Product Introduction:
1. Small precision measuring instruments;
2. Portable, modular expansion;
3. Simple construction, controlled by computer for measurement;
4. Imported core hardware with high precision and stable performance;
5. Easy to operate, one click automatic generation of reports and batch export of reports;
6. The language supports both Chinese and English versions;
7. Simultaneously display strain values, maximum/minimum principal strains, diagonal strains, strain rates, etc.
Product parameters:
| Project | HFM-16D | HFM-24D | HFM-32D |
| Number of channels | 16 analog input channels | 24 analog input channels | 32 analog input channels |
| Maximum Sample Rate | 10KHZ/channel |
| Sampling mode | Multi channel high-speed synchronous sampling |
| ADC resolution | 24 digits |
| Support strain gauge sensor resistance value | 120Ω |
| Support Wheatstone bridge type | 1/4 bridge |
| Accuracy | 0.5%, conversion accuracy: 3.5062nV/V/LSB |
| Precision gain error | 0.05% (calibrated, standard measurement conditions 25 ℃, ± 5 ℃) |
| Full-scale range | ±20000me |
| Overvoltage protection between terminals | ±30V |
| Stability | Gain drift 10ppm/℃ |
| Type of chassis interface | USB 2.0 high-speed input |
| Power supply | 11 to 30VDC, 220VAC |
| Operation temperature | -40℃～70℃， |
| Working humidity | 10%～90% RH， No condensation |
| Storage temperature | -40℃～85℃， |
| Storage humidity | 5%～90% RH， No condensation |
| Protection grade | IP40 |

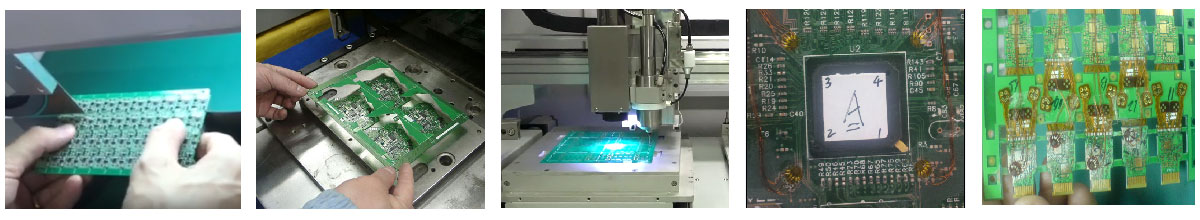

Application case:
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
