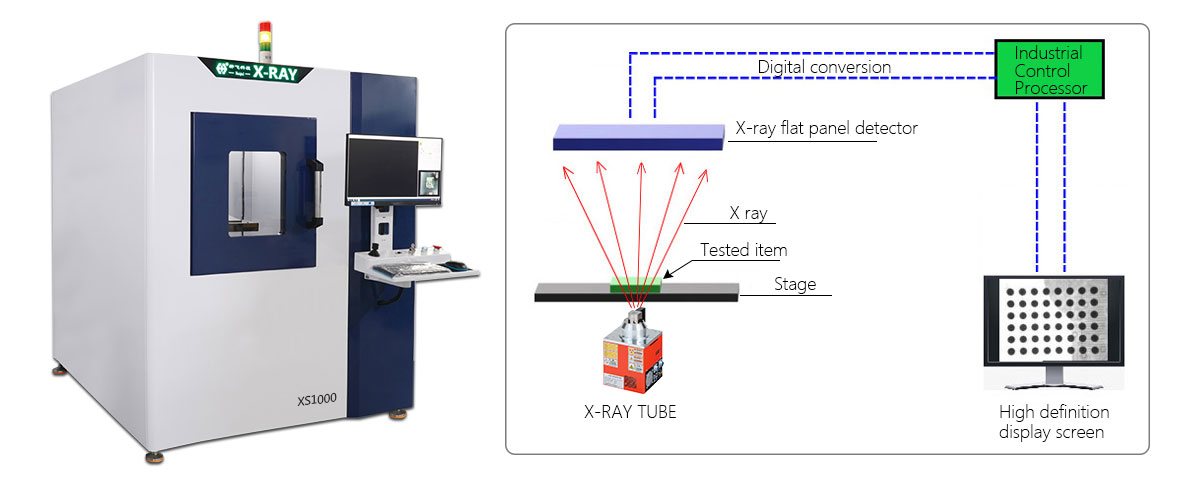

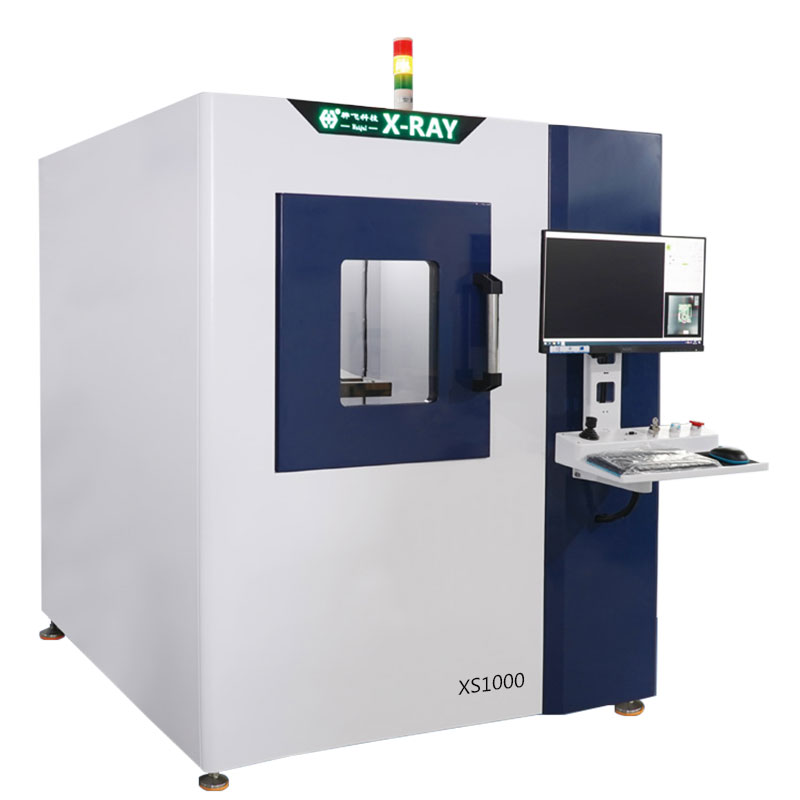

Equipment principle：
1.Non destructive testing of the internal structure of the object being tested by utilizing the penetrability of X-rays and the absorption and scattering characteristics of substances towards X-rays;
2.The X-rays attenuated by the object reach the high-resolution image flat panel detector and undergo digital conversion to form a high-definition two-dimensional grayscale image;
3.The data processing system processes and analyzes images to accurately determine whether there are defects, foreign objects, structural abnormalities, and other adverse issues inside the object;
Application scope：

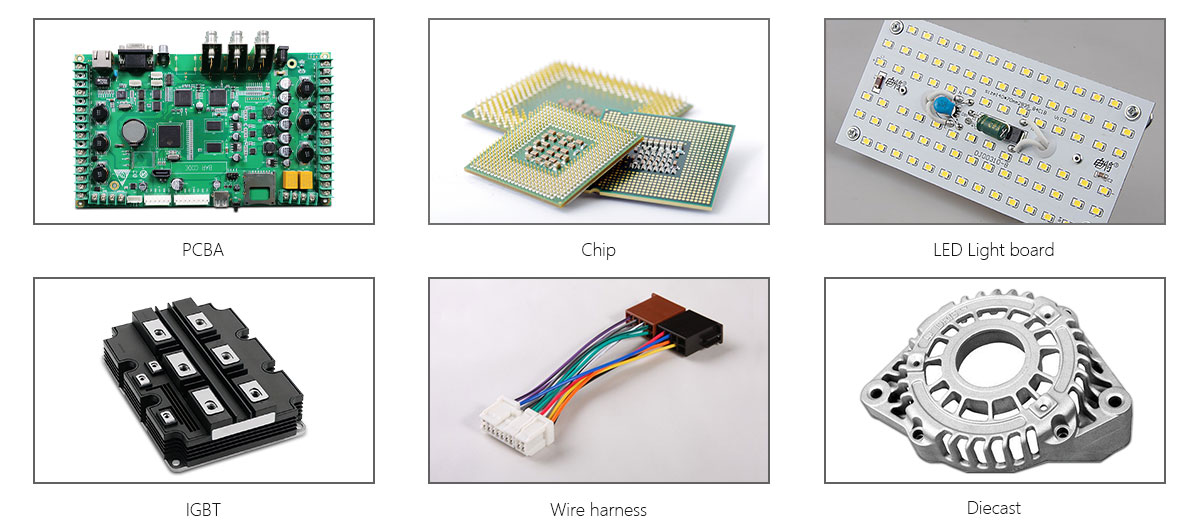

1.Mainly used in fields such as automotive electronics, energy electronics, home appliance electronics, consumer electronics, semiconductors, die-casting, etc;
2.Suitable for testing SMT mounting, BGA solder joints, packaged devices, semiconductor components, precision metal castings, injection molded products, etc;
3.Suitable for PCBA, chips LED、IGBT、 Wires, sensors, fuses, QFNs, MOSFETs FPC、 Non destructive testing of new energy lithium batteries, power cords, diodes, capacitors, automotive parts, aviation parts, etc;

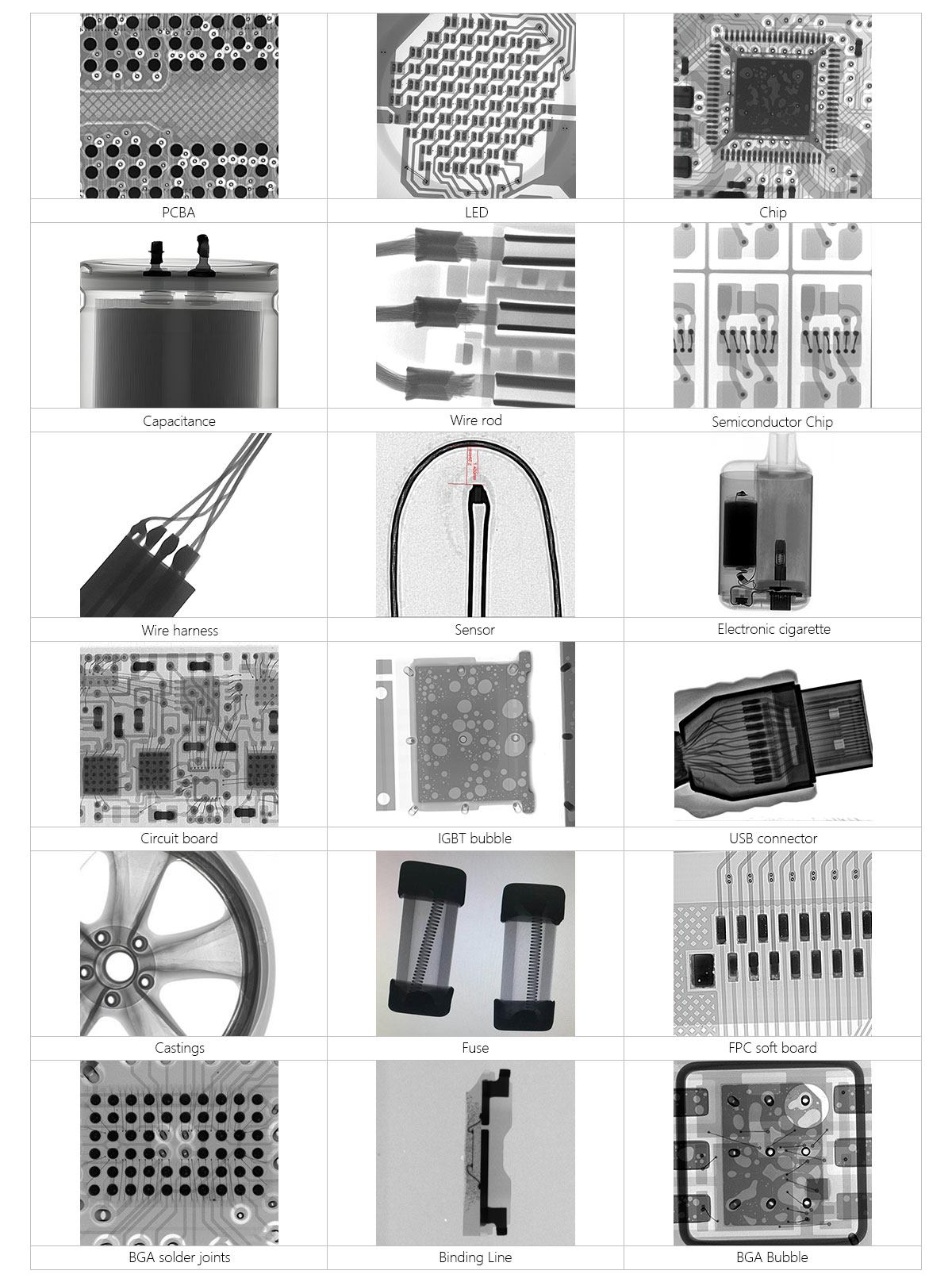

Test case：

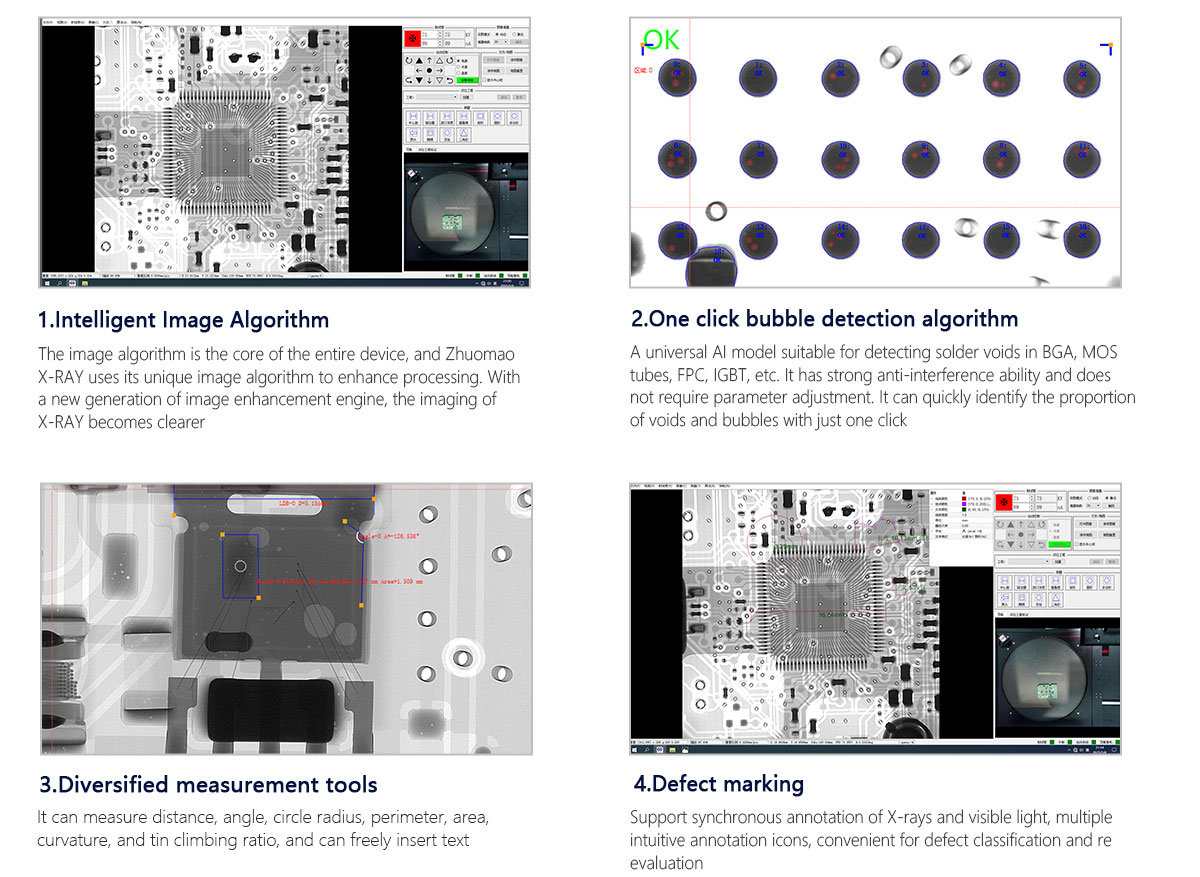

Functional Features：
Other features：
1. The device software is easy to operate, quickly identifying target defects, and requires two hours of training to get started;
2. High voltage, high resolution, and high magnification to obtain the best detection image;
3. CNC mode, available in both free point and matrix modes, is used for batch inspection scenarios and automatically generates inspection reports;
4. Tilt/360 degree rotation, full angle detection, easy to observe product defects from all angles;
5.2.5D imaging provides a more three-dimensional effect, solving the problem of defect location in the spatial dimension;
6. Equipped with innovative self-developed intelligent detection software, new image enhancement processing, and preset filter algorithms;

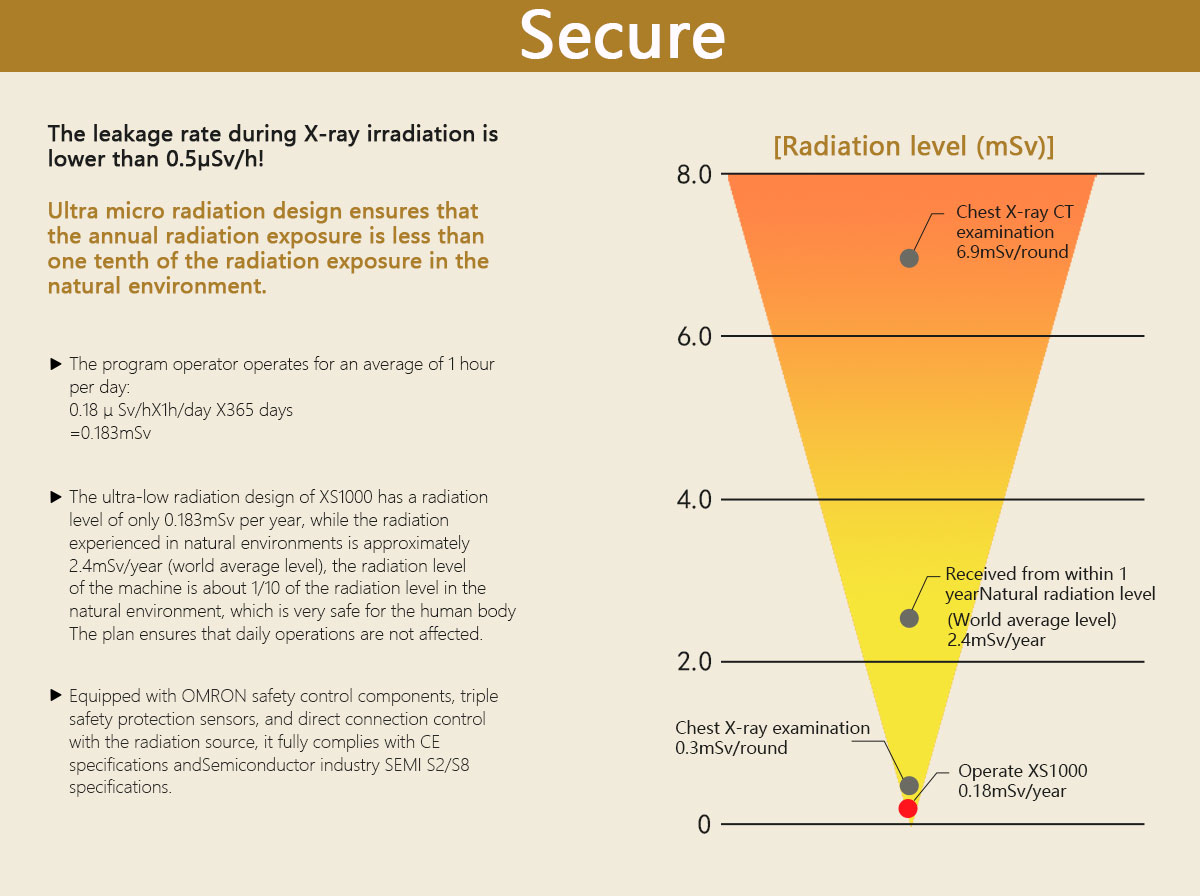

7. Real time monitoring of radiation values, safety interlock, automatic shutdown of radiation sources in idle state, and other multiple protections;
8. AI intelligent detection algorithms can be customized according to users' actual needs;

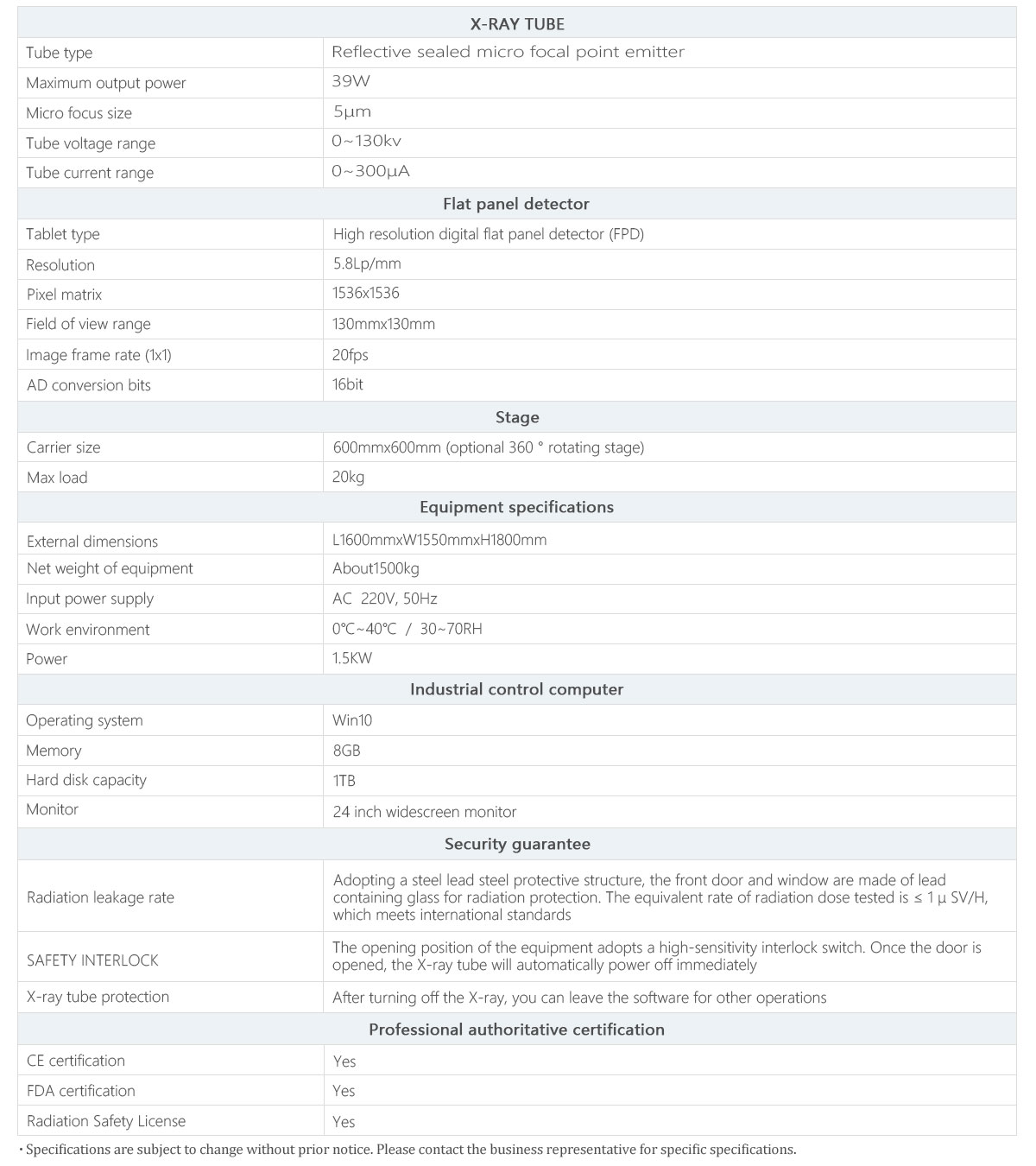

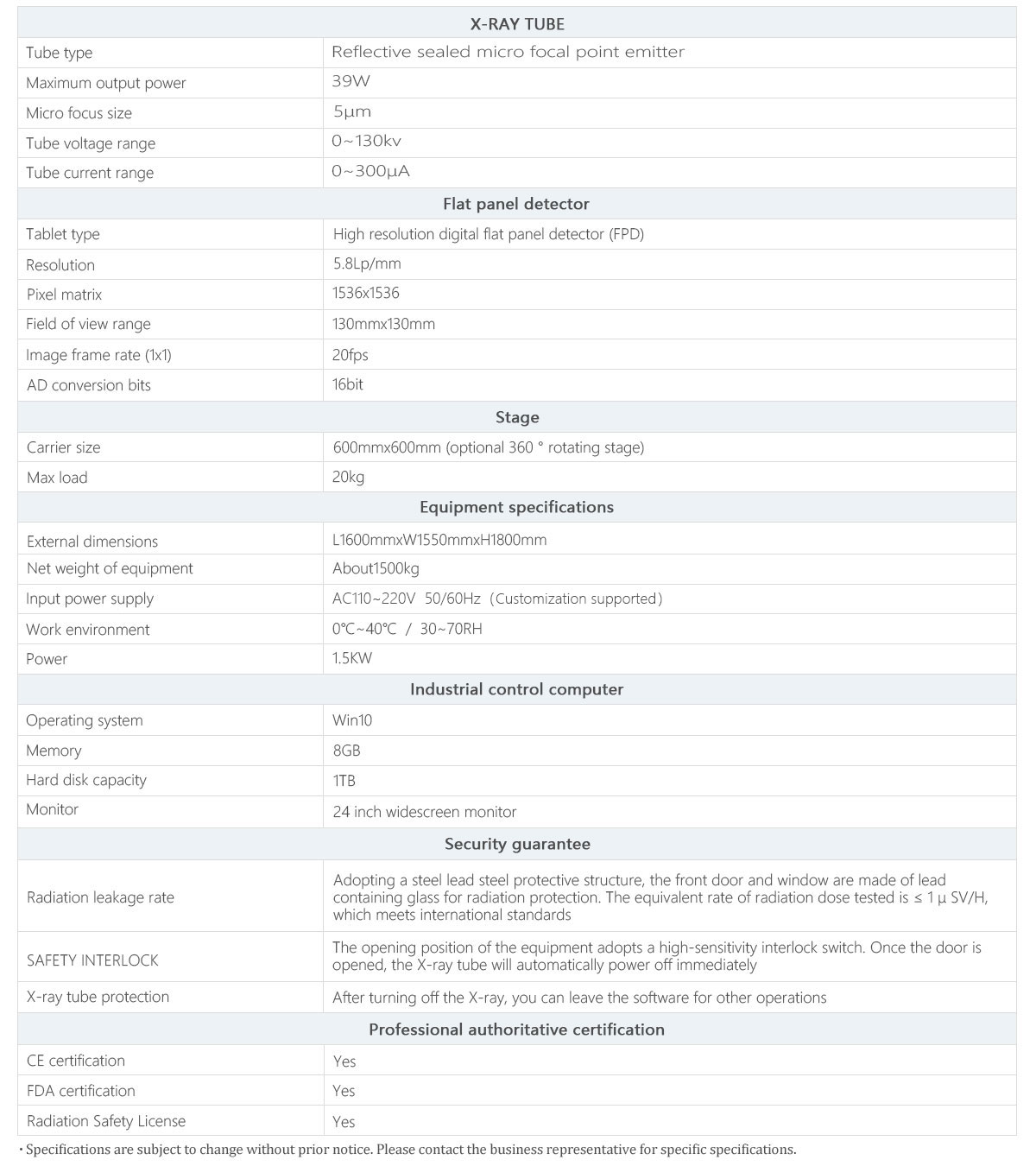

Technical Parameter：
| X-RAY TUBE | |
| Tube type | Reflective sealed micro focal point emitter |
| Maximum output power | 39W |
| Microfocus size | 5µm |
| Tube voltage range | 0-130kv |
| Tube current range | 0-300µA |
| Flat panel detector | |
| Tablet type | Higt resolution digital flat panel detector(FPD) |
| Resolution | 5.8Lp/mm |
| Pixel matrix | 1536x1536 |
| Field of view range | 130mmx130mm |
| Image frame rate(1x1) | 20fps |
| AD conversion bits | 16bit |
| Stage | |
| Carrier size | 600mmx600mm(optional 360° rotating stage) |
| Max load | 20kg |
| Equipment specifications | |
| External dimensions | L1600mmxW1550mmxH1800mm |
| Net weight of equipment | About 1500kg |
| Input power supply | AC:110V/220V, 50/60HZ |
| Work environment | 0℃-40℃ / 30-70RH |
| Power | 1.5KW |
| Industrial control computer | |
| Operating system | Win10 |
| Memory | 8GB |
| Hard disk capacity | 1TB |
| Monitor | 24 inch widescreen monitor |
| Security guarantee | |

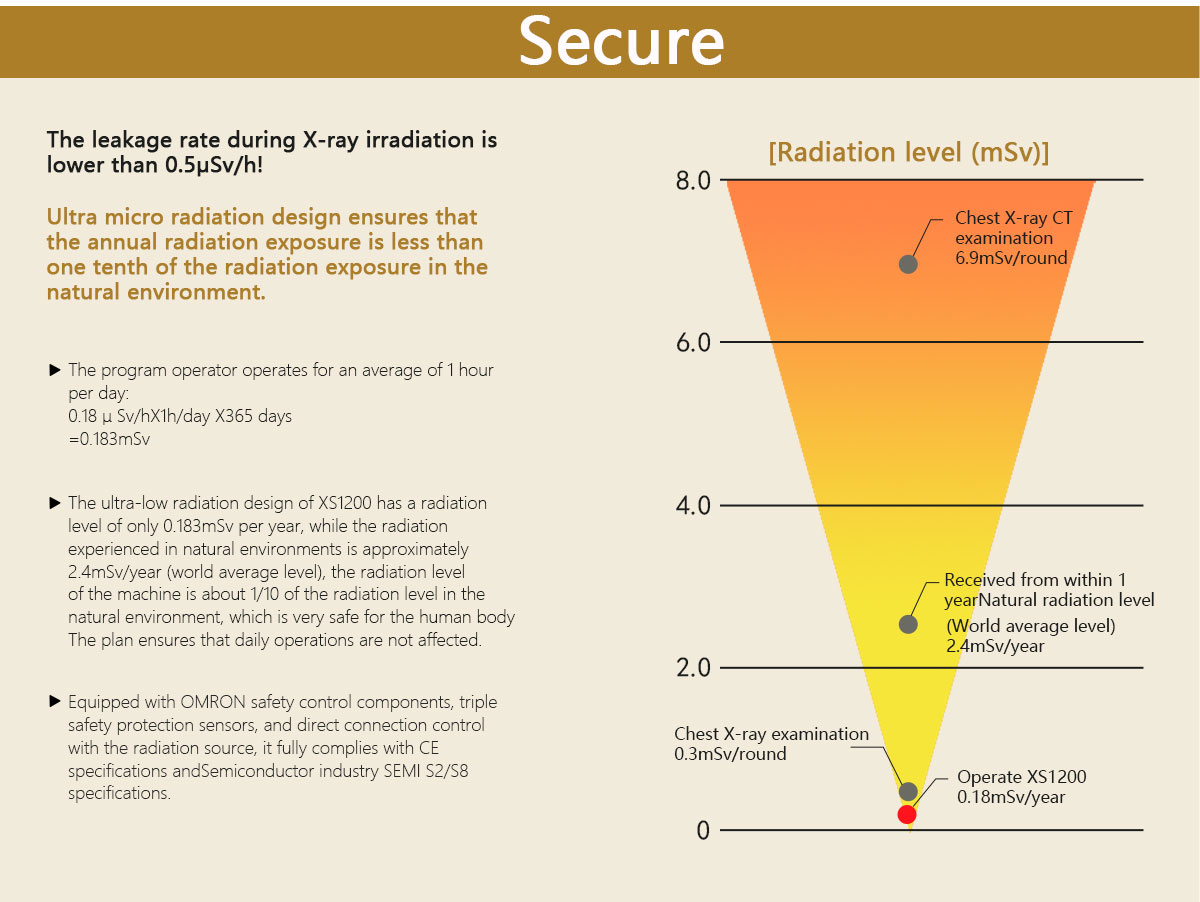

| Radiation leakage rate | Adopting a steel lead steel protective structure,the front door and window are made of lead containing glass for radiation protection.The equivalent rate of radiation dose tested is ≤1µSV/H, which meets international standards. |
| Safety interlock | The opening position of the equipment adopts a high-sensitivity interlock switch. Once the door is opened,the X-ray tube will automatically power off immediately. |
| X-ray tube protection | After turning off the X-ray,you can leave the software for other operations. |
| Professional authoritative certification | |
| CE certification | Yes |
| FDA certification | Yes |
| Radiation Safety License | Yes |
Specifications are subject to change without prior notice.Please contact the business representative for specific specifications.

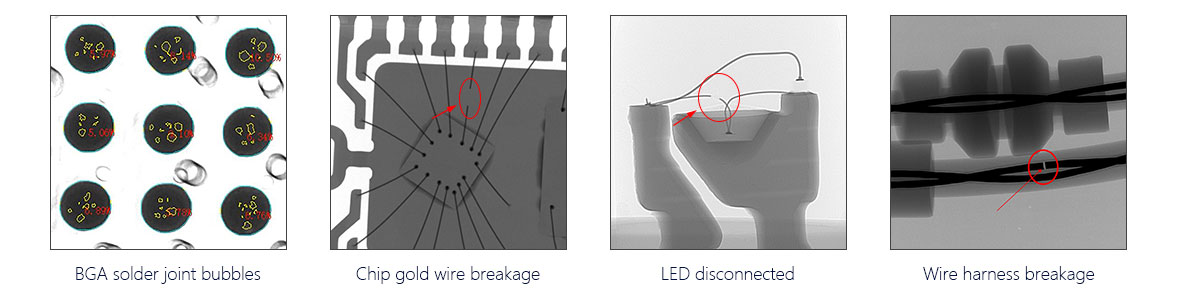

Detection effect：
