Application scope：

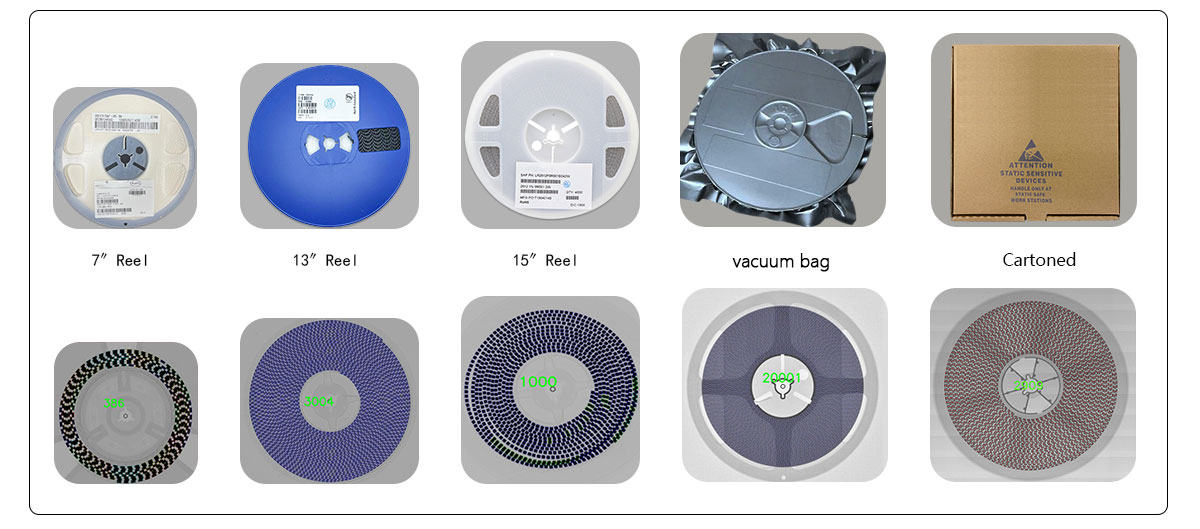

1.Mainly used for rapid counting of roll and reel materials in the SMT industry, capable of counting a full range of items such as 7-17-inch trays/JEDEC Tray/IC moisture sensitive bags;

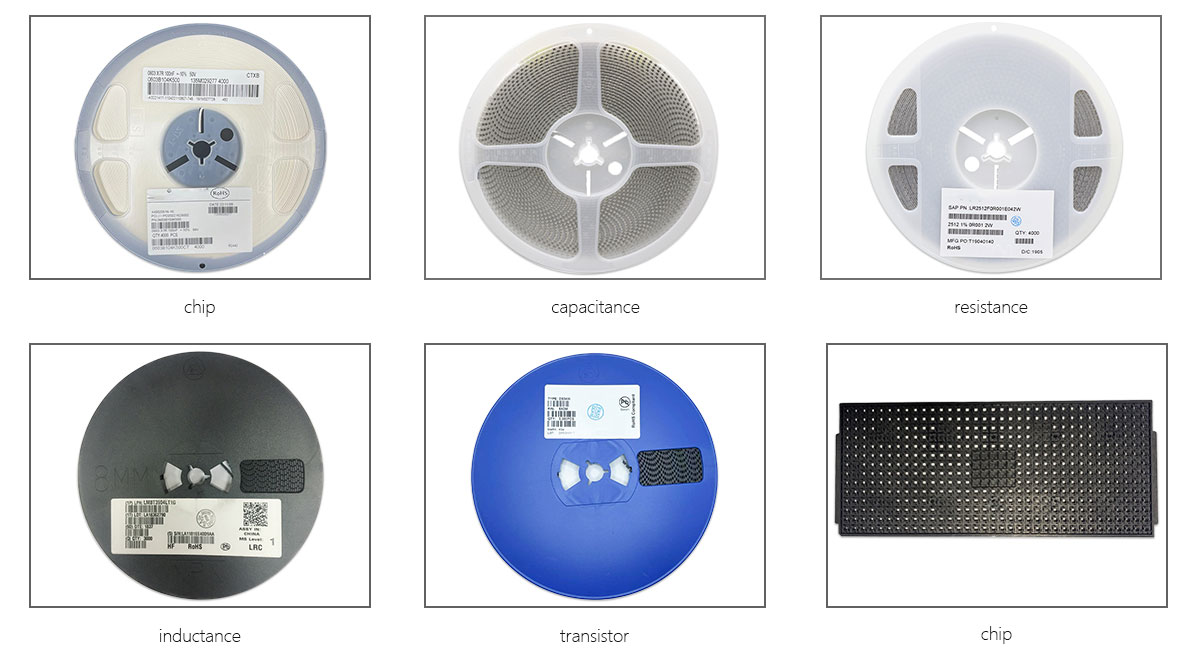

2.Suitable for all types of SMD components above 01005, including capacitors, resistors, inductors, diodes, transistors, IC chips, LED chips, and other SMD components;
3.Suitable for electronic product production, SMT processing plants, EMS professional electronic manufacturing service plants, SMD component manufacturers, SMD component suppliers, and component counter roll tape packaging
manufacturers.

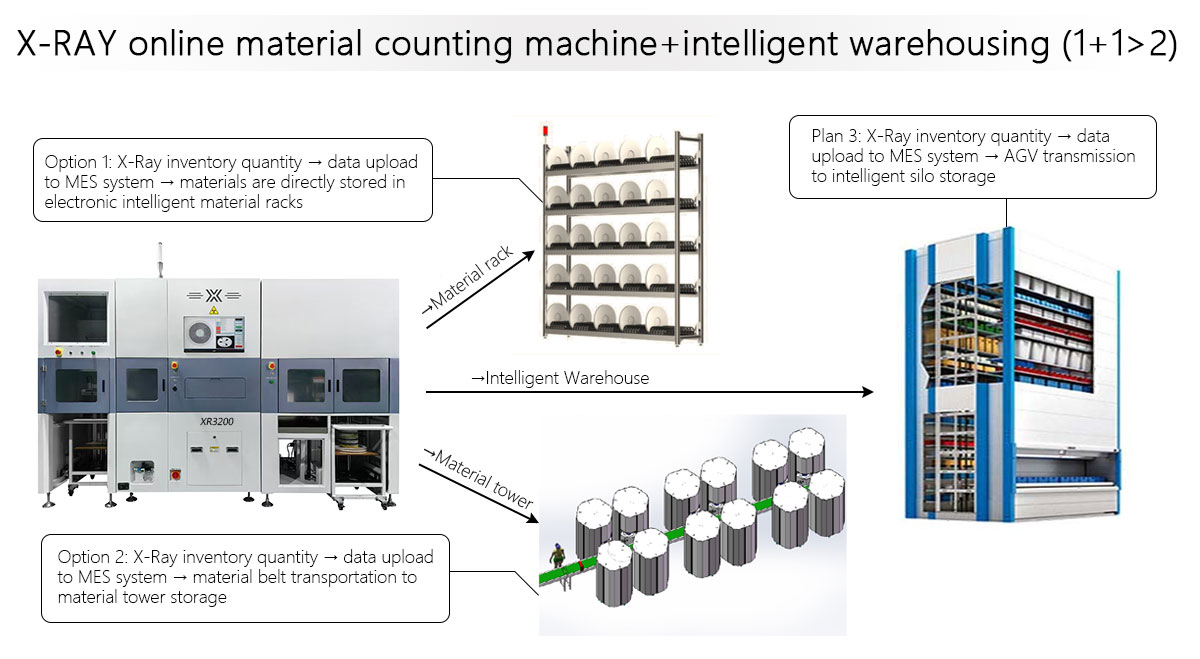

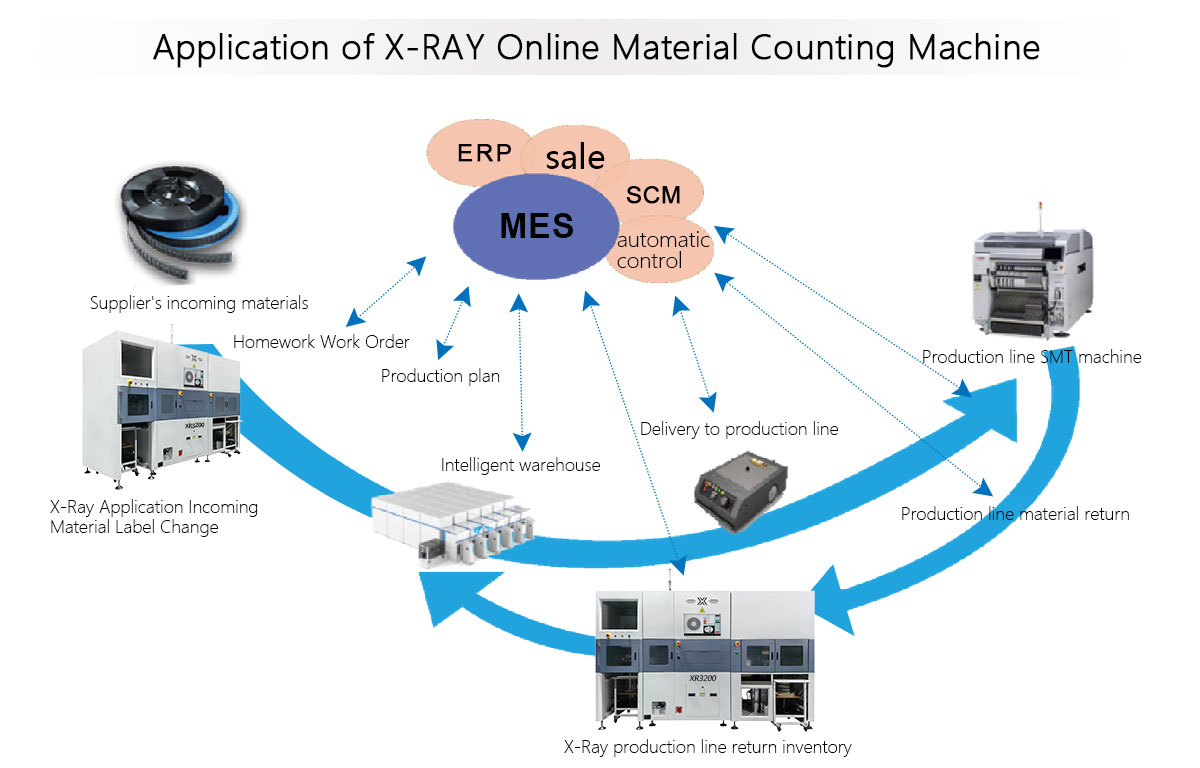

Application Cases：

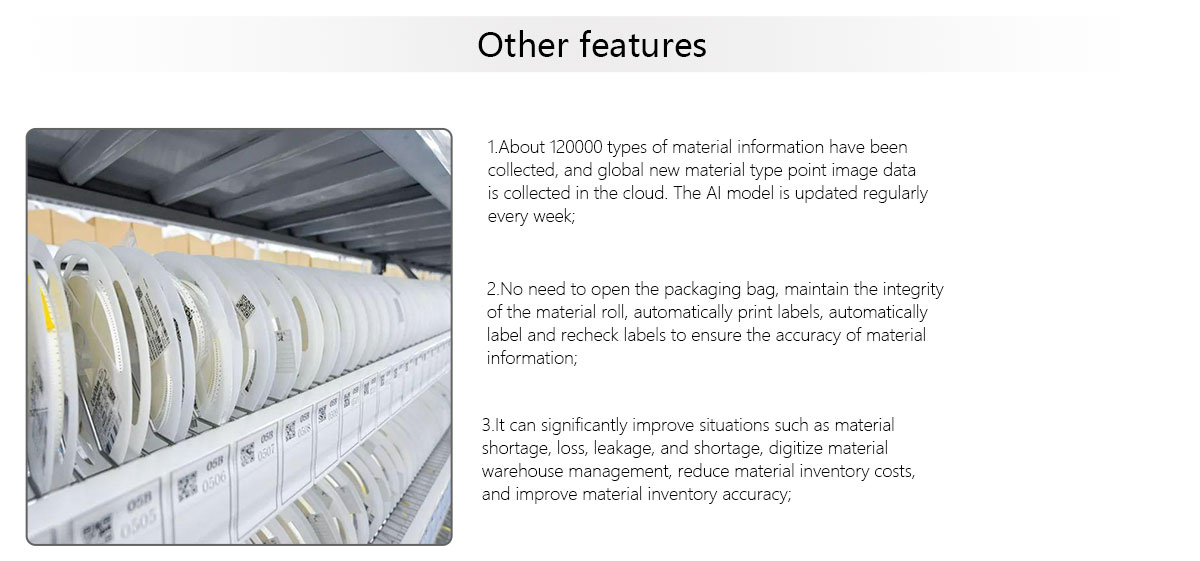

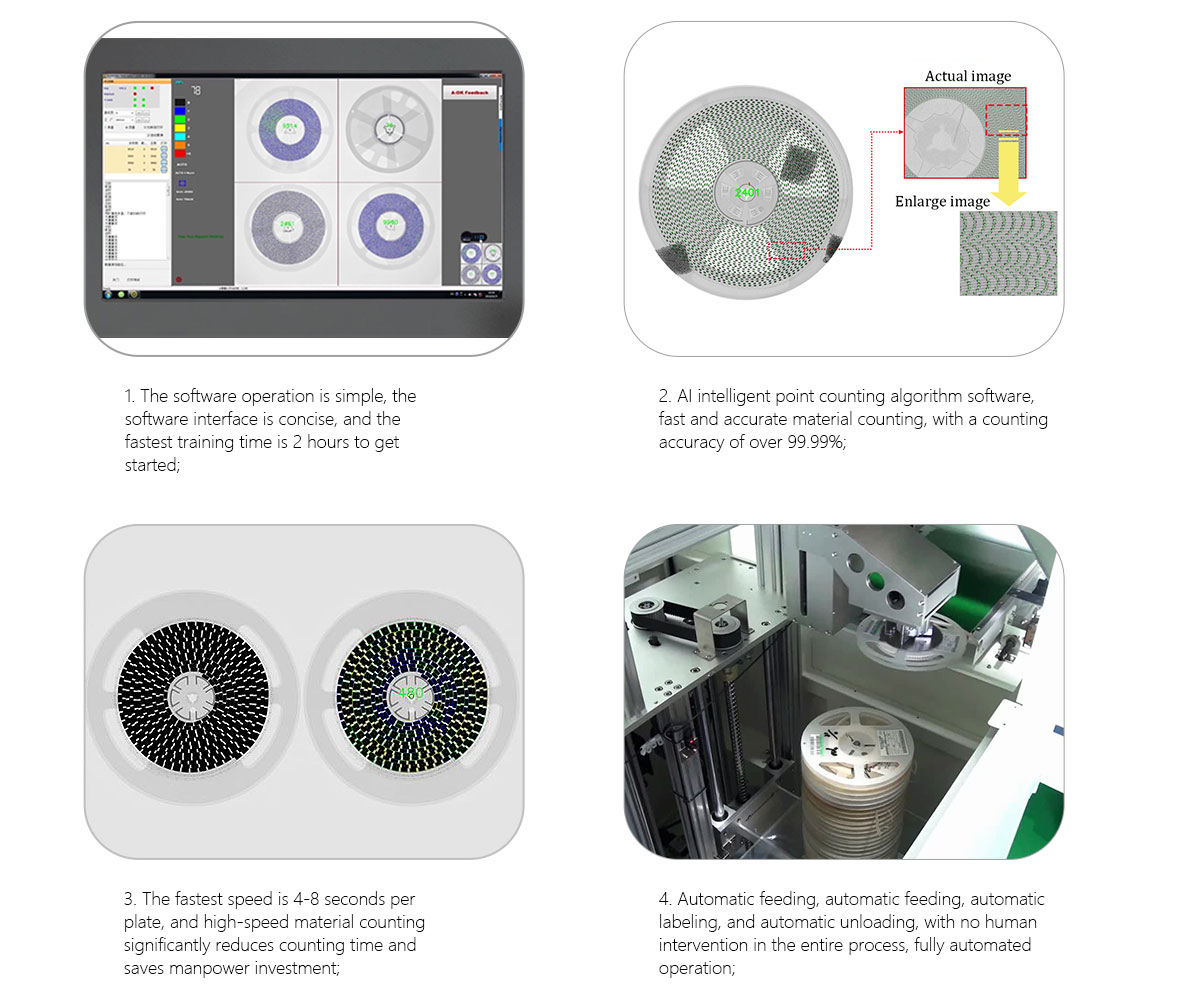

Function characteristics：

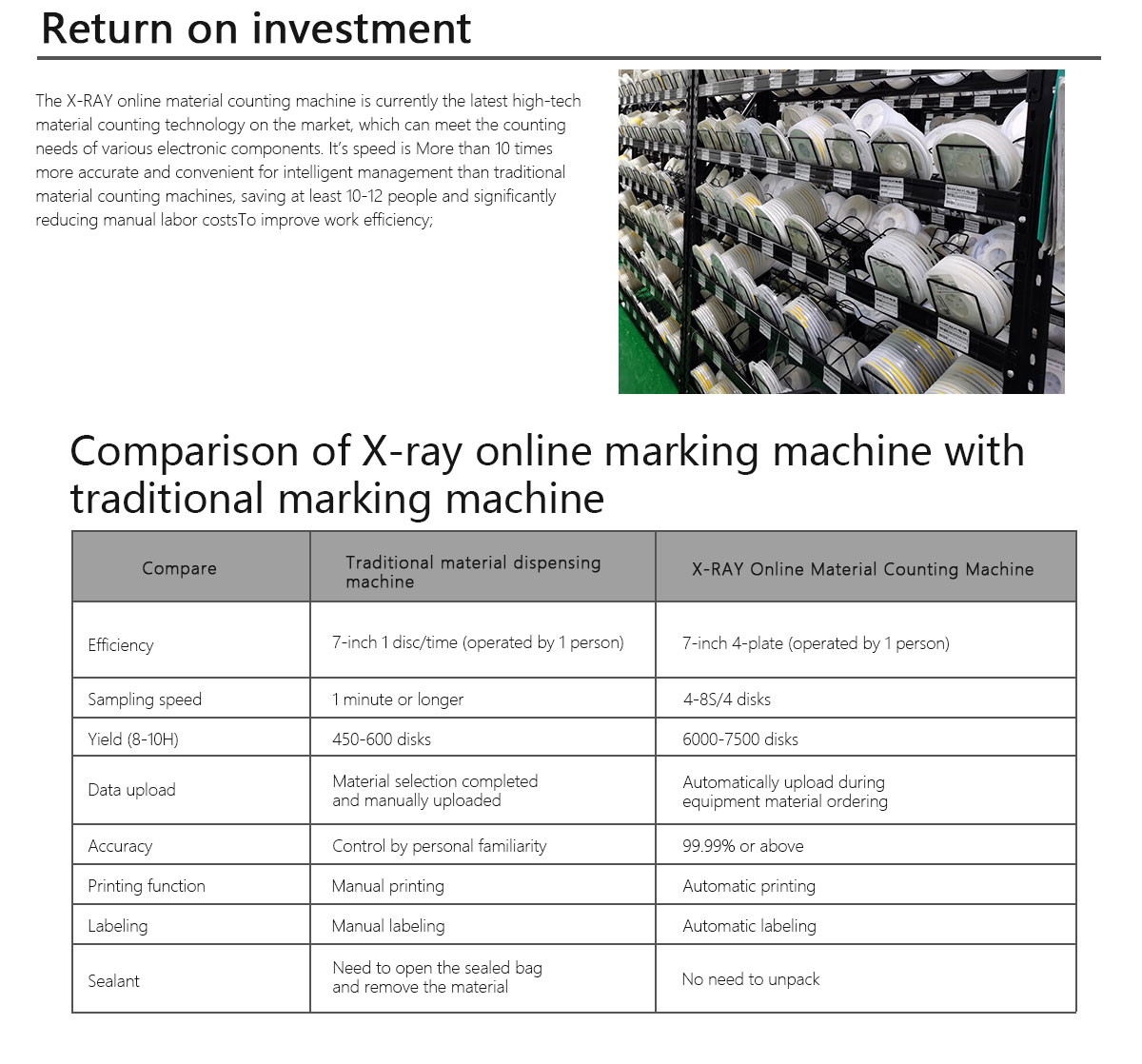

Product description：

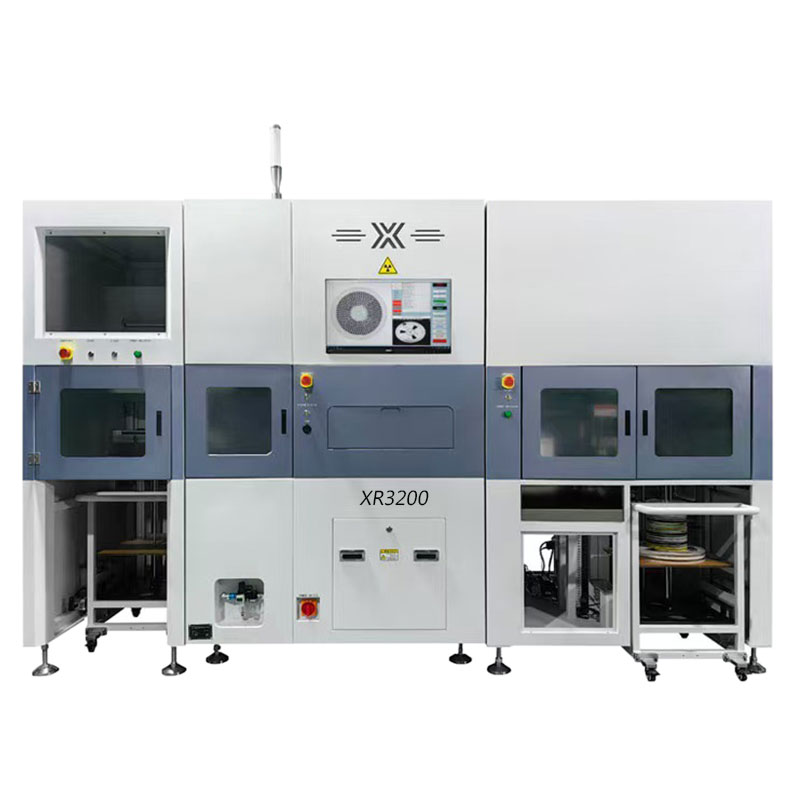

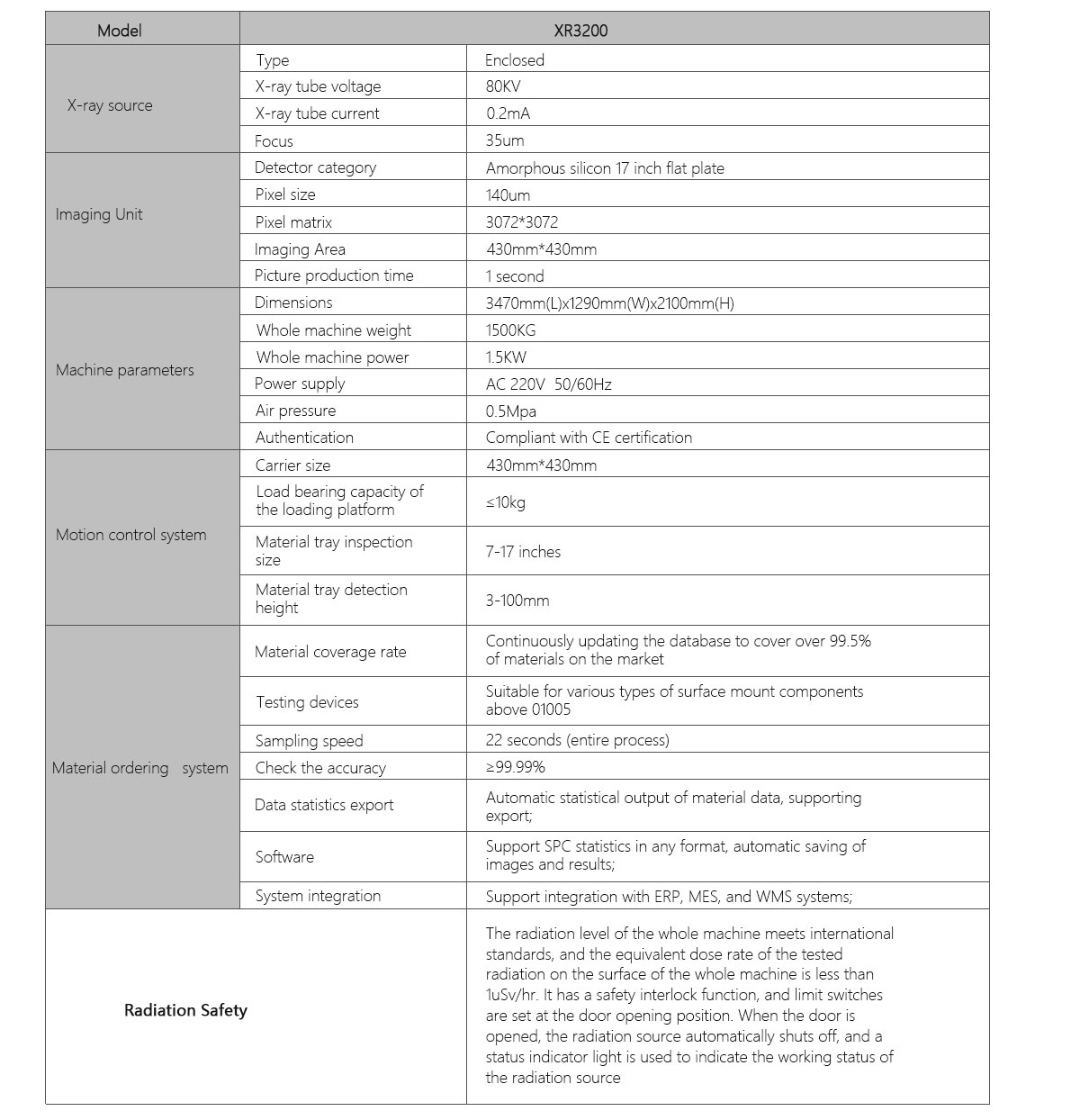

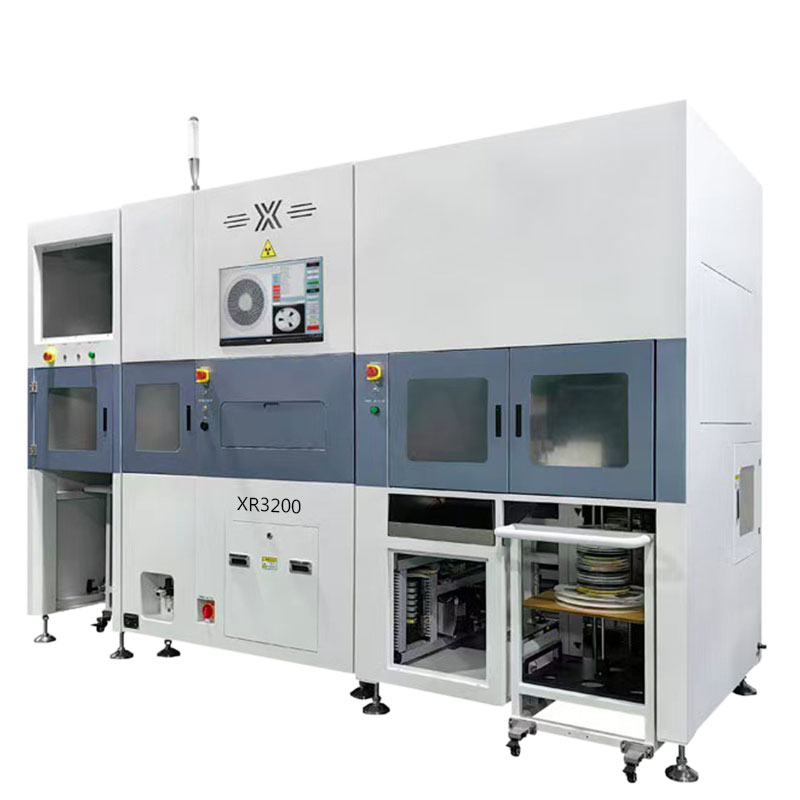

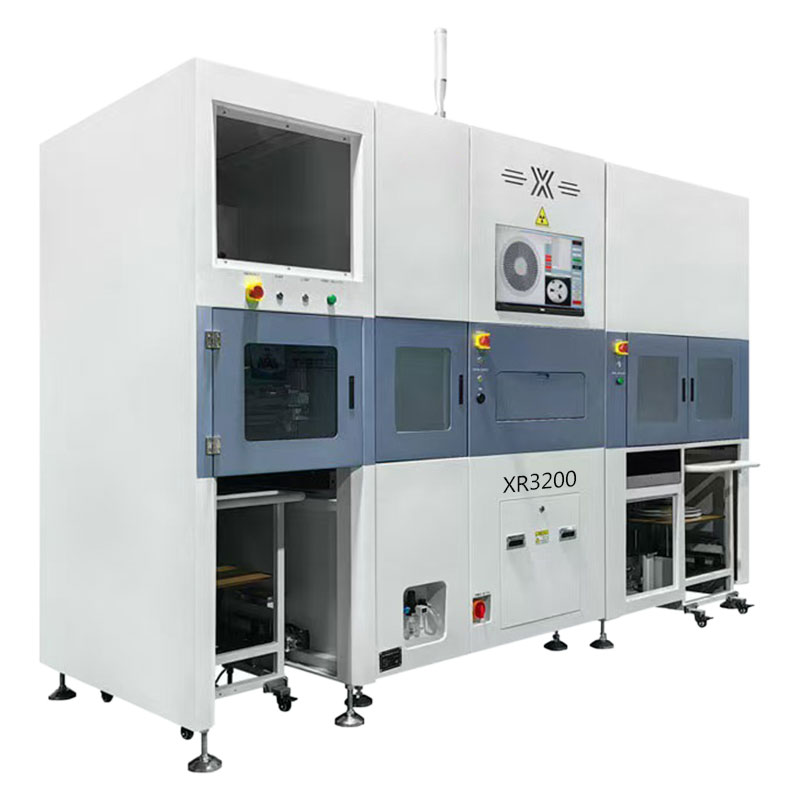

| Model | XR3200 |
| X-ray source | Type | Enclosed |
| X-ray tube voltage | 80KV |
| X-ray tube current | 0.2mA |
| Focus | 35μm |
| Imaging Unit | Detector category | Amorphous silicon 17 inch flat plate |
| Pixel size | 140μm |
| Pixel matrix | 3072*3072 |
| Imaging Area | 430mm*430mm |
| Picture production time | 1 second |
Machine parameters | Dimensions | 3470mm(L)x1290mm(W)x2100mm(H) |
| Whole machine weight | 1500KG |
| Whole machine power | 1.5KW |
| Power supply | AC:110V/220V, 50/60HZ |
| Air pressure | 0.5Mpa |
| Authentication | Compliant with CE certification |
Motion control system | Carrier size | 430mm*430mm |
Load bearing capacity of the loading platform | ≤10kg |
| Material tray inspection size | 7-17 inches |
| Material tray detection height | 3-100mm |
Material ordering system | Material coverage rate | Continuously updating the database to cover 99.5% of materials on the market |
| Testing devices | Suitable for various types of surface mount components above 01005 |
| Sampling speed | 22 seconds(entire process) |
| Check the accuracy | ≥99.99% |
| Date statistics export | Automatic statistical output of material data,supporting export |
| Software | Support SPC statistics in any format,automatic saving of images and results |
| System integration | Support integration with ERP,MES,and WMS systems |
| Radiation Safety | The radiation level of the whole machine meets international standards,and the equivalent dose rate of the tested radiation on the surface of the whole machine is less than 1uSv/hr. It has a safety interlock function,and limit switches are set at the door opening position.When the door is opened,the radiation source automatically shuts off,and a status indicator light is used to indicate the working status of the radiation source |
