Product Introduction:
The Decan Line maximizes productivity in connection with the T-solution, an optimized software for integrated management, and introduces stable quality.
The DECAN F2 is applicable to a wide range of parts and high speed placement available simultaneaously!
SAMSUNG Pick and Place Machine
Advance chip mounter
Fast & flexible pick and place machine
Multi-functional SMT placement
Fast flexible pick & place machine
DECAN F2 Advanced Chip Shooter
▶ Speed : 80,000 CPH (Optimum)
▶ Structure : 2 Gantry x 10 Spindles/Head
▶ Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
±30μm Cpk≥1.0 (IC)
▶ Parts Size : 0402~□55mm (H15mm)
▶ PCB Size : L510xW460mm (Standard)
L1,200xW460mm (Option)
▶ Wide Part Handling Capability
▶ Various PCB Transfer Systems
▶ Verified Production History Management Solution
▶ High Speed Placement
| Model | DECAN S2 | DECAN F2 | DECAN L2 |
| Of Spindles | 2 Gantryx10 Spidles/ Head | 2 Gantryx10 Spidles/ Head | 2 Gantryx6 Spidles/ Head |
| Placement Speed | 92,000 CPH (Optimum) | 80,000 CPH (Optimum) | 56,000 CPH (Flying Vision,Optimum) |
| Vison | Flying Vision | Flying Vision Stage Vision (Optimun) |
| Placement Accuracy | ±28μm Cpk≥1.0 | ±40μm Cpk≥1.0 |
|
| Component Range | 03015 ~ 12mm(H10mm) | 0402(01005) ~ 16mm(H10mm) | 0402(01005) ~ 21mm(H12mm) |
| PCB Size | 50x40~510x460mm (standard) ~610x460mm(Option), ~740x460(Option) ~810x460mm(Option), ~1200x460(Option) |
| Conveyor Configurations | Standard : 1-2- 1 Option : 1-2-2/2-2-2/2-2-1/1-1-1 Factory Option : Single Conveyor (Jedec Tray 2ea) |
| Feeder Capacity | 120ea (8mm) |
| Power | Voltage : 3 phase AC200/208/220/240/380/415V ±10% Frequency : 50/60Hz Power Consumption : Max. 5.0kVA |
| Air Consumption | 50Nl/min |
| Weight | About 1,800kg |

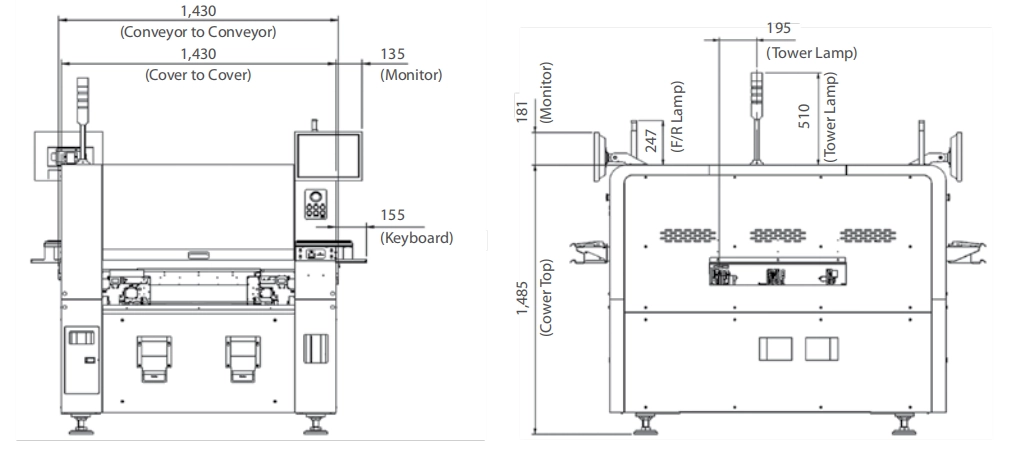

| External Dimensions (mm) | 1,430(L) x 1,740(D) x 1,485(H) |
* Under optimum condition of specified by HANWHA TECHWIN.
