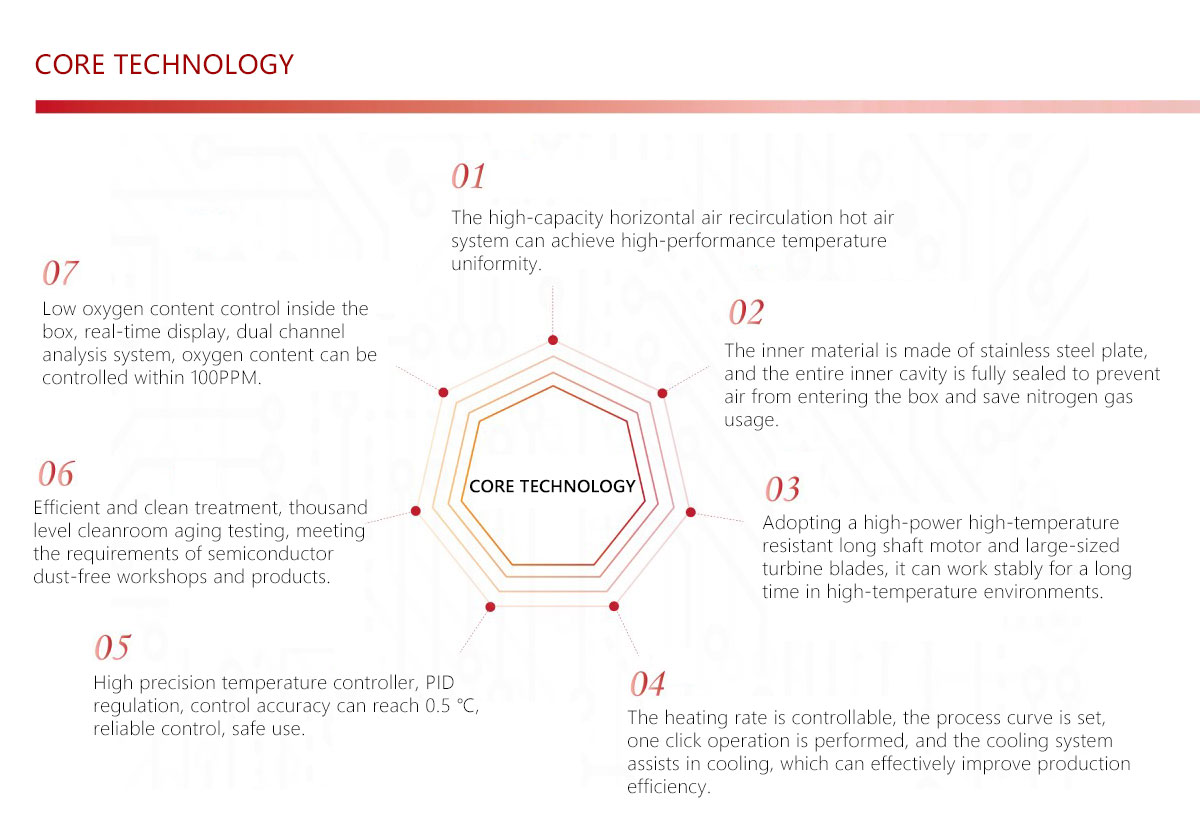

Features:

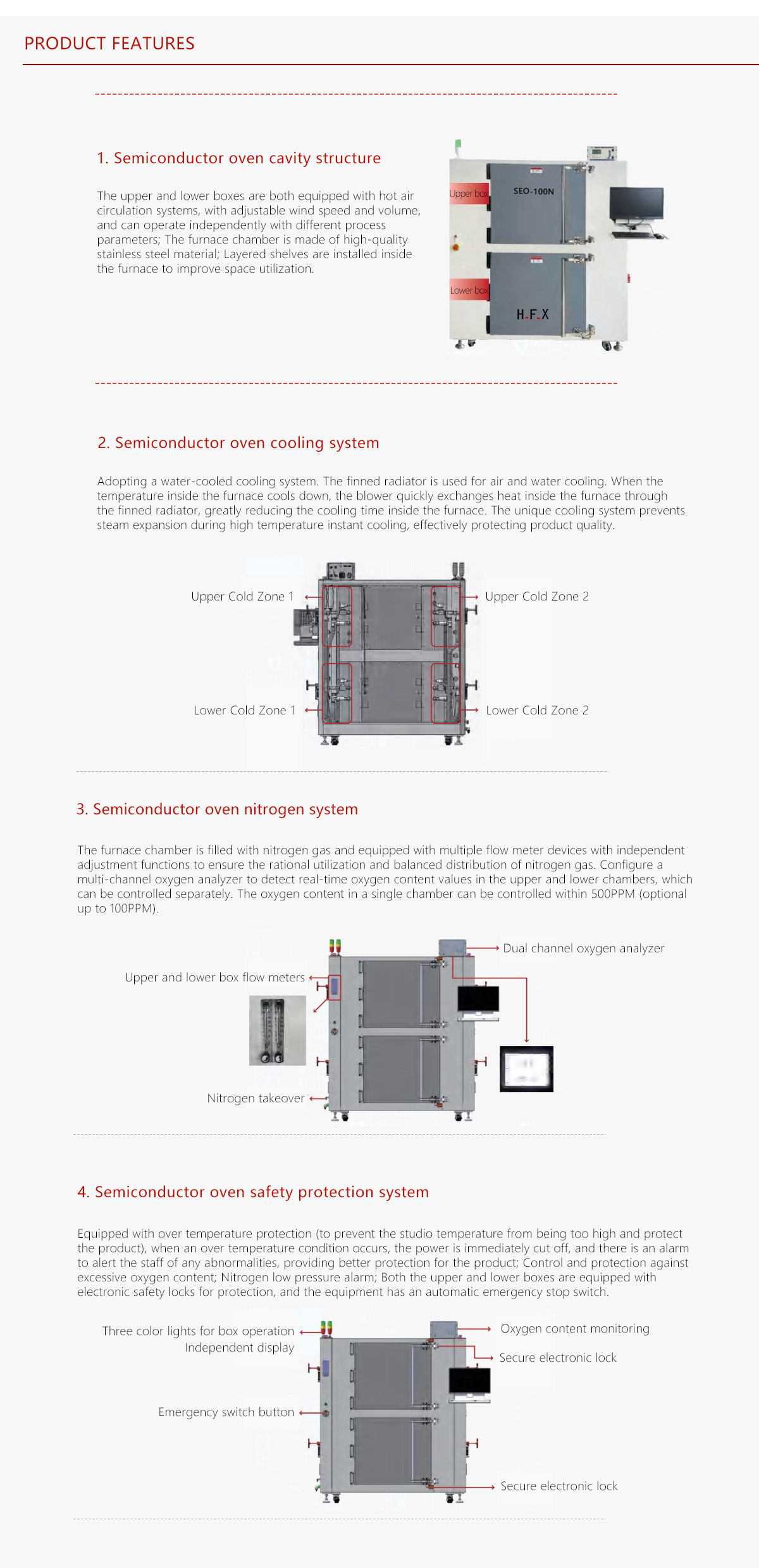

1. High capacity horizontal air recirculation hot air system
2. The chamber is fully sealed design, adopts stainless steel plate, with good air tightness, saving nitrogen
3. The upper and lower box can run independently with different process parameters to meet the production of different products
4. The heating rate is controllable, and the cooling system assists the cooling, which can effectively improve the production efficiency
5. High precision temperature controller, the control accuracy can reach to 0.5℃
6. Test by Class 1000 clean room, it can meet the semiconductor dust-free workshop and product requirements
7. Low oxygen content control, real-time monitoring, the oxygen content can be controlled within 100PPM
Product parameters:
| Model No. | HDX-9000 |
| Heating system |
| Box dimension | L700*W550*H(600*2)mm |
| Number of boxes and working mode | Two boxes, each box can run independently |
| Hot air system | Hot air circulation system with adjustable wind speed and volume |
| Cooling system | Water cooling circulation system, according to customer workshop cooling water |
| Nitrogen system | With flow meter and oxygen analyzer to display oxygen content in real-time |
| Internal specification | Equipped with 4 stainless steel support shelves, with adjustable spacing between shelves |
| Cooling system |
| Temperature operating range | Room temperature+10℃~250℃ |
| Temperature control mode | PID closed-loop control+SSR drive |
| Control system | PC+PLC electrical control system, Windows operating interface |
| Temperature accuracy | ±0.5℃ |
| Temperature uniformity | ±2%℃(no- load) |
| Heating rate | ≥5℃/min |
| Cooling rate | 2-5℃/min |
| Heating power | 10KW*2 |
| Oxygen content control | ≤500PPM(Option:≤100PPM) |
| Working voltage | AC3Ø 5W 380V50/60HZ |
| Total power | 21KW |
| MES communication protocol | Standard |
| Cleanliness class | Class 1000 |
| Conveyor system |
| Dimension(LxWxH) | L1700*W1200*H1800mm |
| Weight | 500-800kg |
| Color | Bright wrinkled white |
| Remark:Support to customize the nitrogen or vacuum oven |
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
H.F.X - Our Company
About H.F.X:
H.F.X is a leading provider of factory planning solutions and industrial inspection solutions. We have 4 wholly-owned factories that provide professional consulting and services to global customers. We have over 11 years of experience in electronic integrated solutions and industrial testing solutions. We not only provide a complete set of equipment, but also offer comprehensive technical support and services, and provide customers with more reasonable professional advice. We help many clients establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We will establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We are trustworthy.
Exhibition：
For SMT factory setup and industrial non-destructive testing, we can provide you with:
1. We provide you with complete SMT solutions and industrial testing solutions
2. We Provide Core Technology With Our Equipments
3. We provide the most professional technical services
4. We have rich experience in establishing SMT factories and industrial testing
5. We can solve any problems related to SMT and industrial testing
Semiconductor Oven HDX-9000 series
