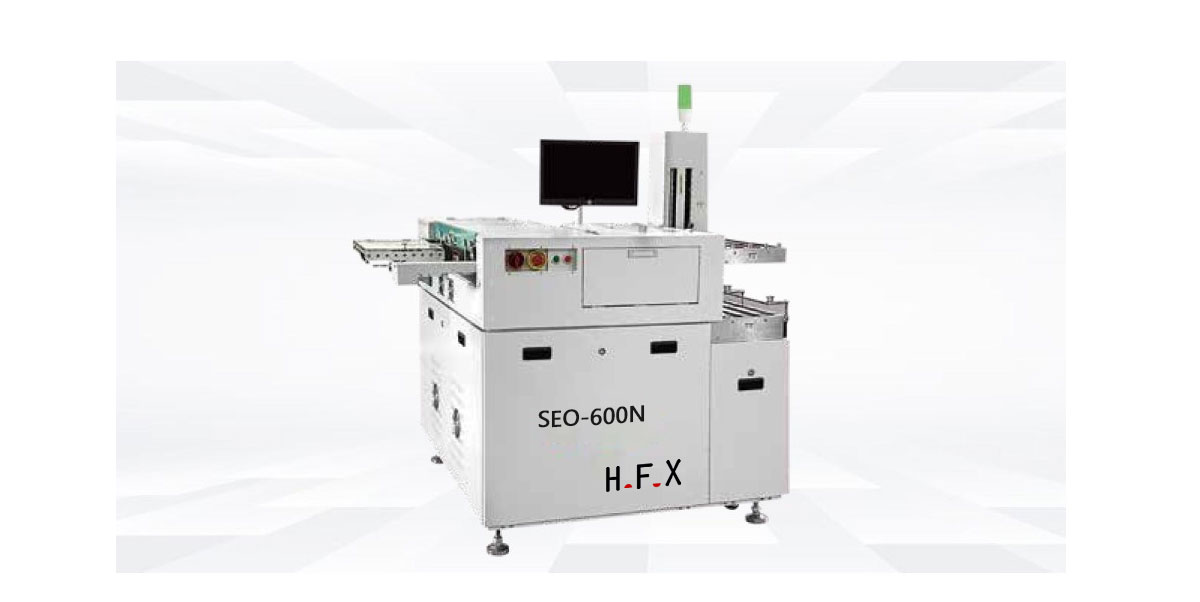

Quick curing oven product features:

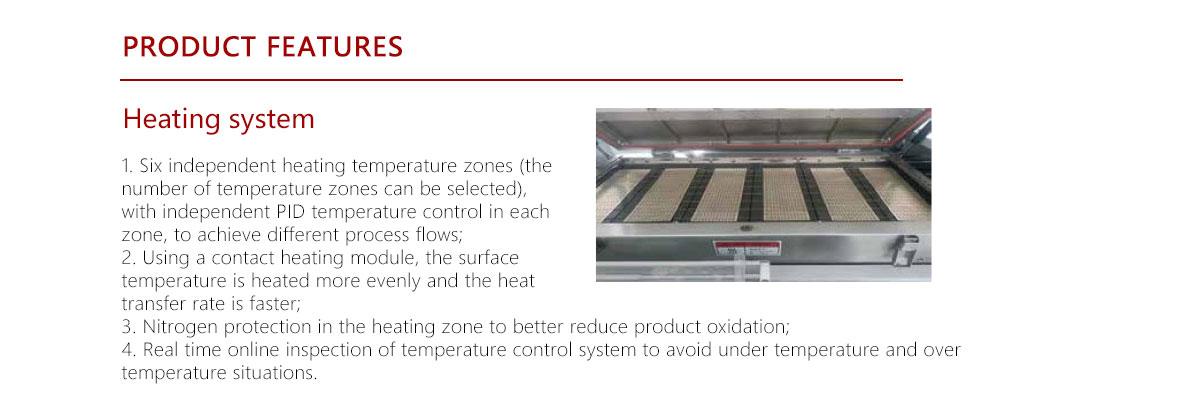

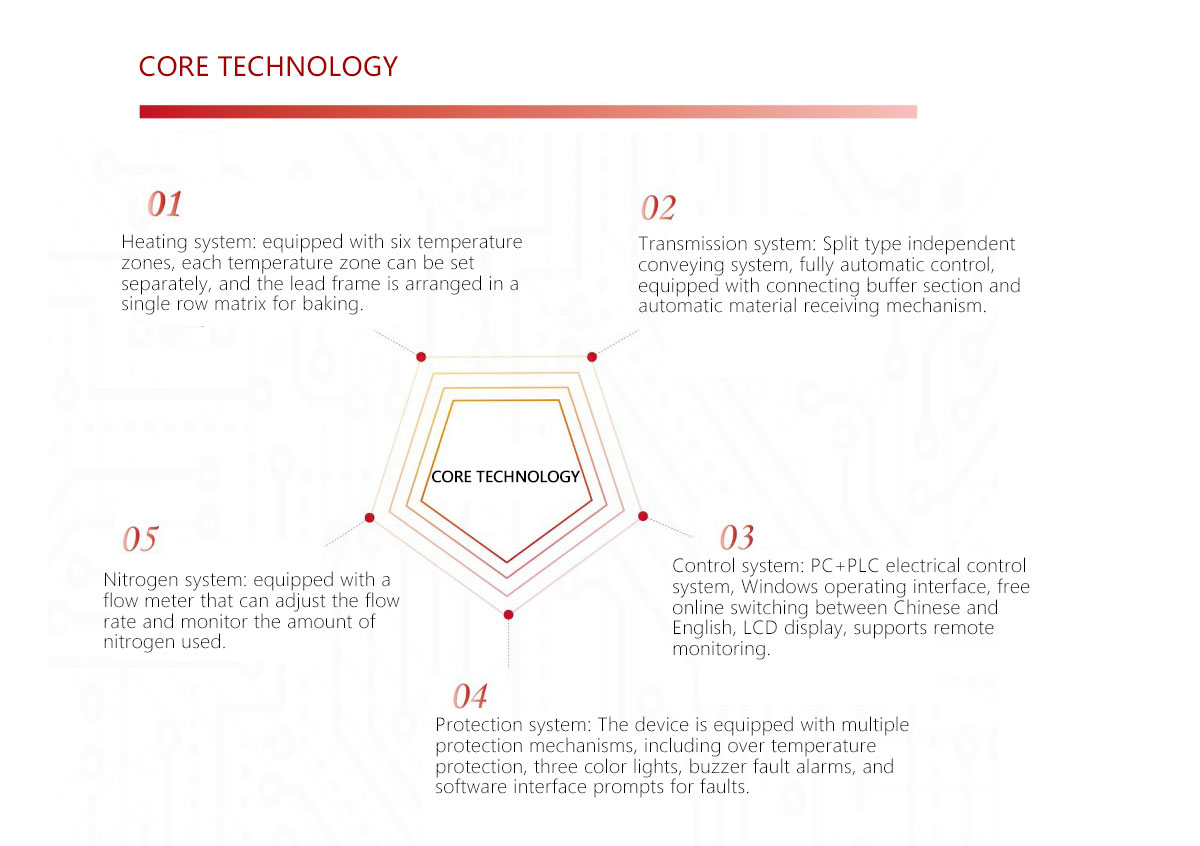

Heating system: equipped with six temperature zones, each temperature zone can be set separately, and the lead frame is arranged in a single row
matrix for baking.

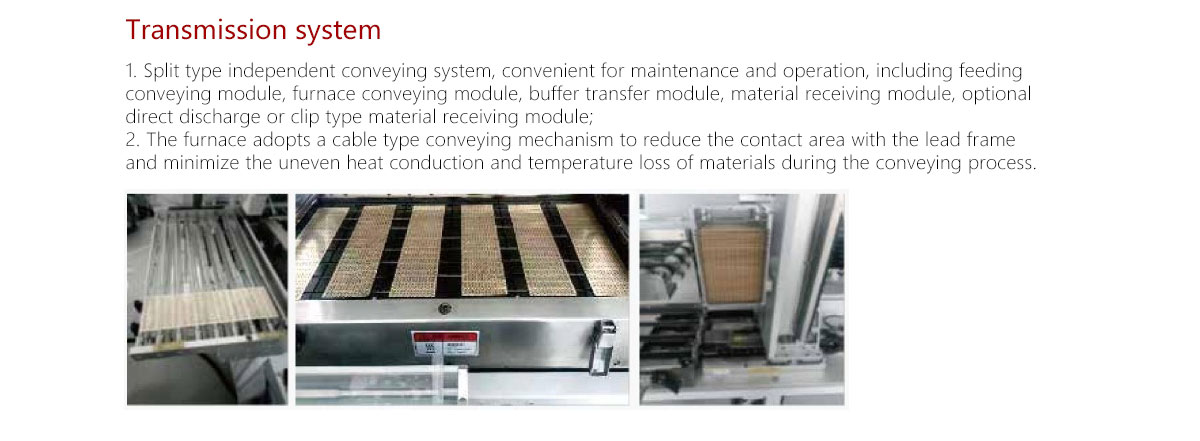

Transmission system: Split type independent conveying system, fully automatic control, equipped with connecting buffer section and automatic
material receiving mechanism.

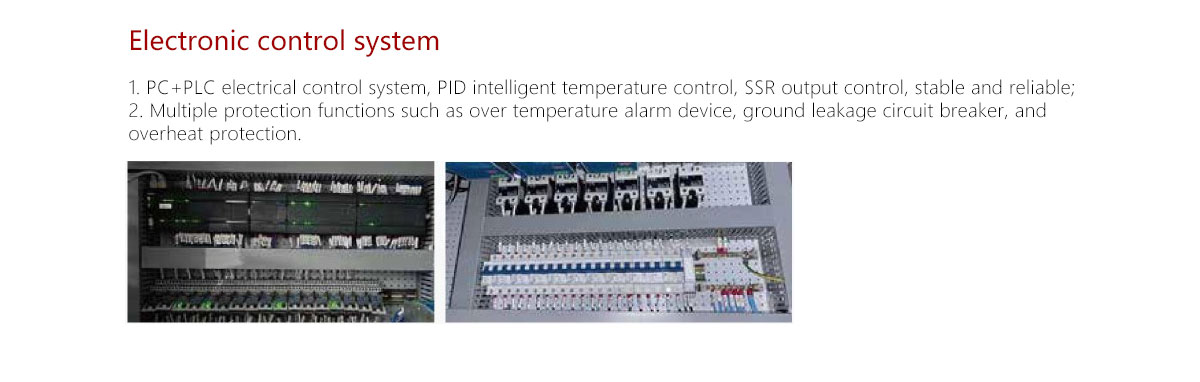

Control system: PC+PLC electrical control system, Windows operating interface, free online switching between Chinese and English, LCD display,
supports remote monitoring.
Protection system: The device is equipped with multiple protection mechanisms, including over temperature protection, three color lights, buzzer
fault alarms, and software interface prompts for faults.

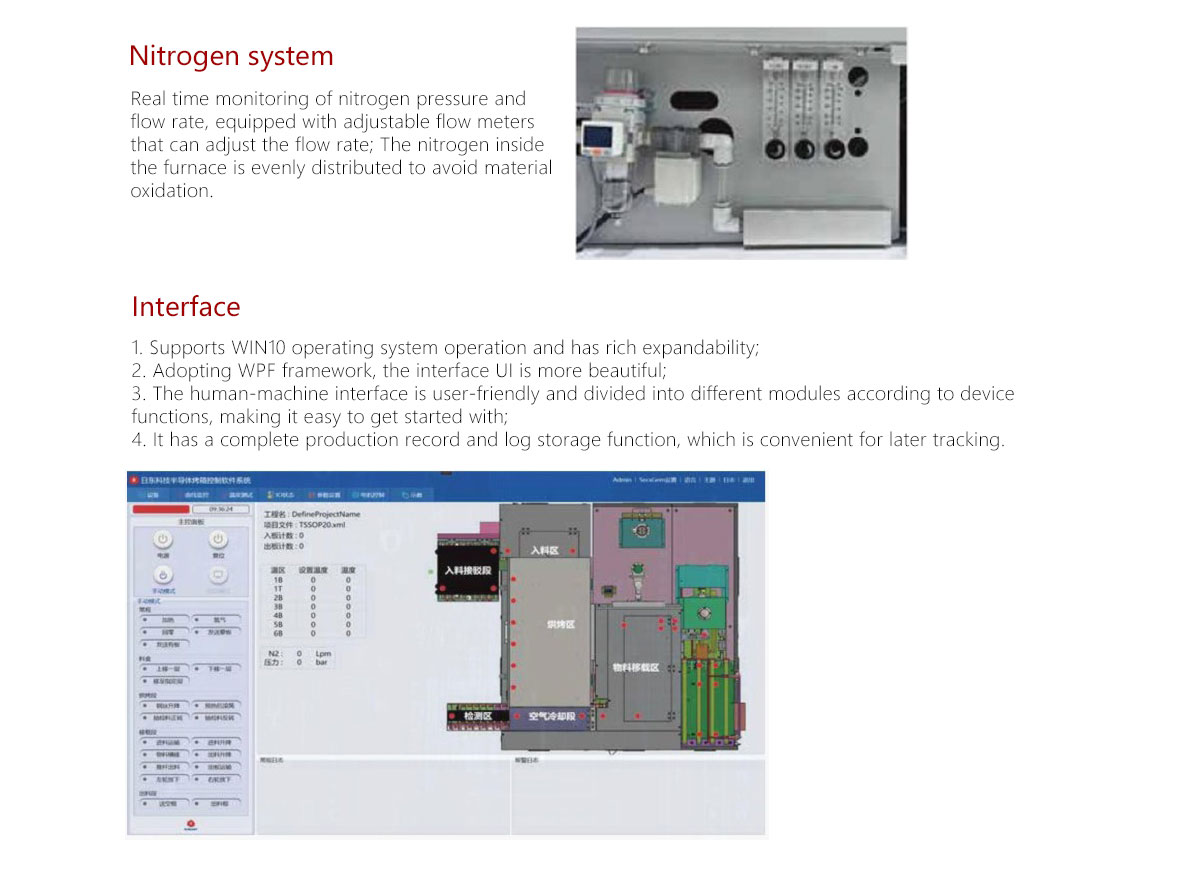

Nitrogen system: equipped with a flow meter that can adjust the flow rate and monitor the amount of nitrogen used.

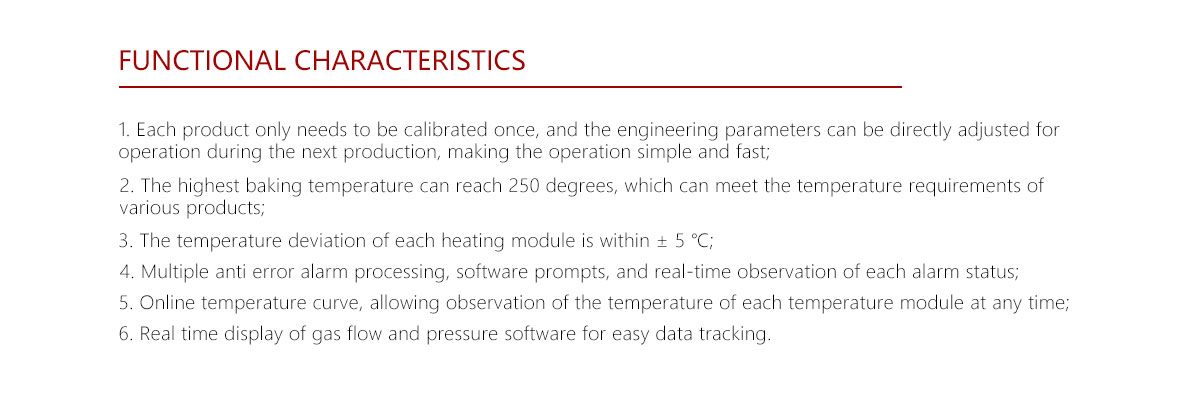

Functional features:
Each product only needs to be calibrated once, and the engineering parameters can be directly adjusted for operation during the next production,
making the operation simple and fast;
The highest baking temperature can reach 250 degrees, which can meet the temperature requirements of various products; The temperature deviation
of each heating module is within ± 5 ° C;
Multiple anti error alarm processing, software prompts, real-time observation of each alarm status;
Online temperature curve, allowing for real-time observation of the temperature of each temperature module;
Real time display of gas flow and pressure software for easy data tracking.
Product parameters:
| Model No. | HDX-8000 |
| Box part | |
| Lead frame size | L:125mm~300mm;W:25mm~100mm;T:0.12mm~1mm |
| Magazine size | L:130mm~308mm;W:30mm~110mm;H:100mm~180mm |
| Lead frame type | single row/matrix |
| Number of curing zones | 6(Optional) |
| Temperature setting range | 50℃~250℃ |
| Temperature uniformity | 士5℃ |
| Temperature controller | PID intelligent temperature control,SSR output control |
| Curing time | Set according to process requirements (The time can be set) |
| Nitrogen system | With N2 flowmeter interface,the nitrogen flow is adjustable. |
| Safety device | Overtemperature alarm device,earth leakage circuit breaker,overheat protection |
| Exhaust system | Independent interface with exhaust device |
| Nitrogen consumption | ≤100L/min |
| Compressed air and flow | 4-7bar,90L/min |
| Power supply | 3 Phase 380V AC50/60Hz |
| Startup power | Approx.3.3KW |
