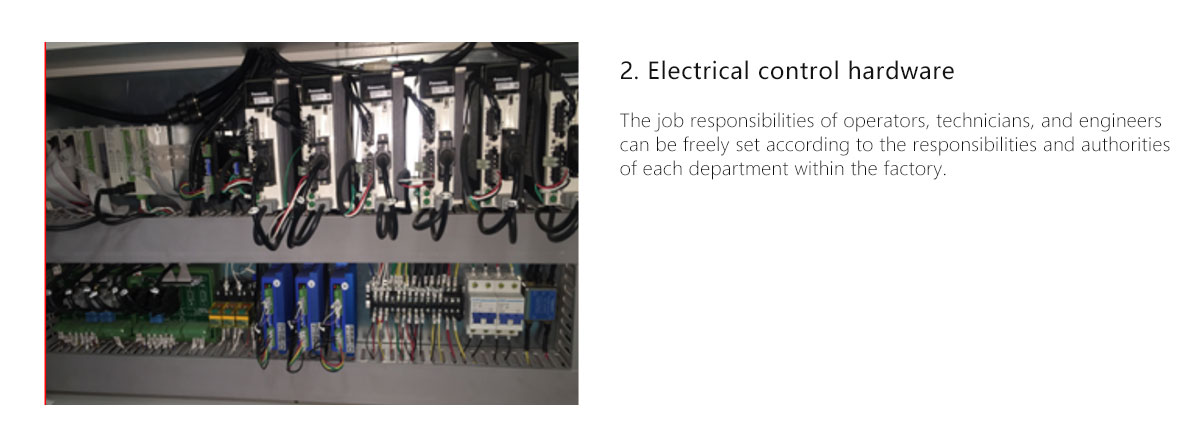

FL-330A Stamp Hole PCB Splitting Machine Introduction:
(1) Online fully automatic PCB splitter, from feeding, cutting to discharging, meets the requirements of automated factory buildings.
(2) Automatically adjust the board width to receive PCB boards, and automatically classify finished products and waste materials after cutting, saving
labor costs.
(3) The entire series is equipped with a high-speed CCD visual automatic correction system, which improves cutting accuracy and operational efficiency
with large radiation.
(4) Using high-speed spindle for PCB cutting and splitting, with low cutting stress, high accuracy, and suitable for any shape of circuit board.
(5) Double table movement, capable of simultaneously performing board cutting and circuit board placement, improves work efficiency.
FL-330A Stamp Hole PCB Splitting Machine Application:
(1) Online operation, automatic feeding, cutting, waste board and finished board classification discharge have always saved labor.
(2) The entire series is equipped with a high-speed CCD visual alignment correction device, which is particularly suitable for high-precision and high-capacity PCB board splitting operations.
(3) Suitable for small multi connected PCB boards such as mobile phones, digital cameras, GPS, PDA, and MODULE.
(4) Expanding the size is suitable for processing large circuit boards such as digital TVs, PC hosts, workstations, servers, etc.
(5) Using dual work platforms to place workpieces reduces waiting time and increases production capacity.
(6) Various board collection schemes can be selected to achieve the goal of fully automated labor savings.
Product parameters:
| Items | FL-330A |
| Valid cutting size | 350*300mm |
| Cutting Function | Tweening to straight line,circle and Are |
| Process table | Dual tables |
| Repeat precision | ±0.01mm |
| Cut precision | ±0.05mm |

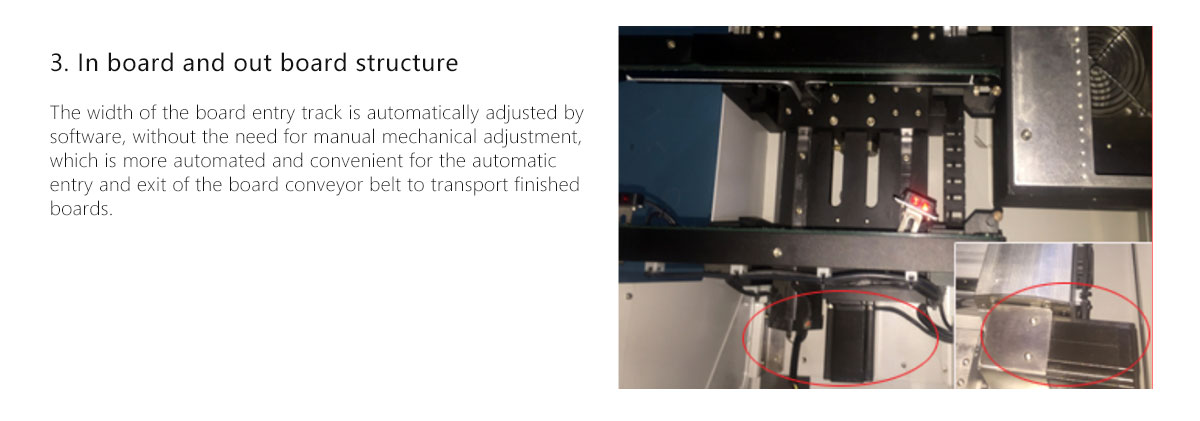

| Loading method | Track convey |
| Unloading method | Conveyor or Track convey |
| Spindle speed | MAX80,000RPM |

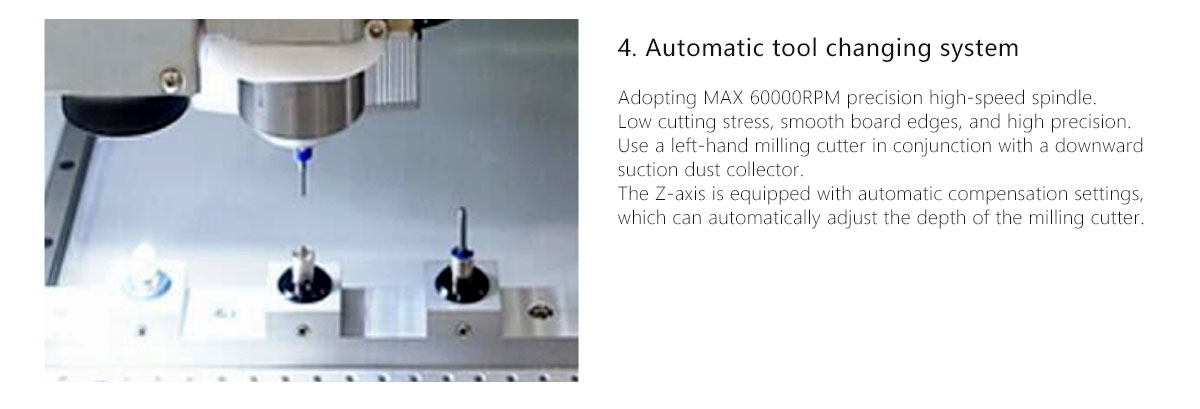

| Spindle change method | Auto-tool change |

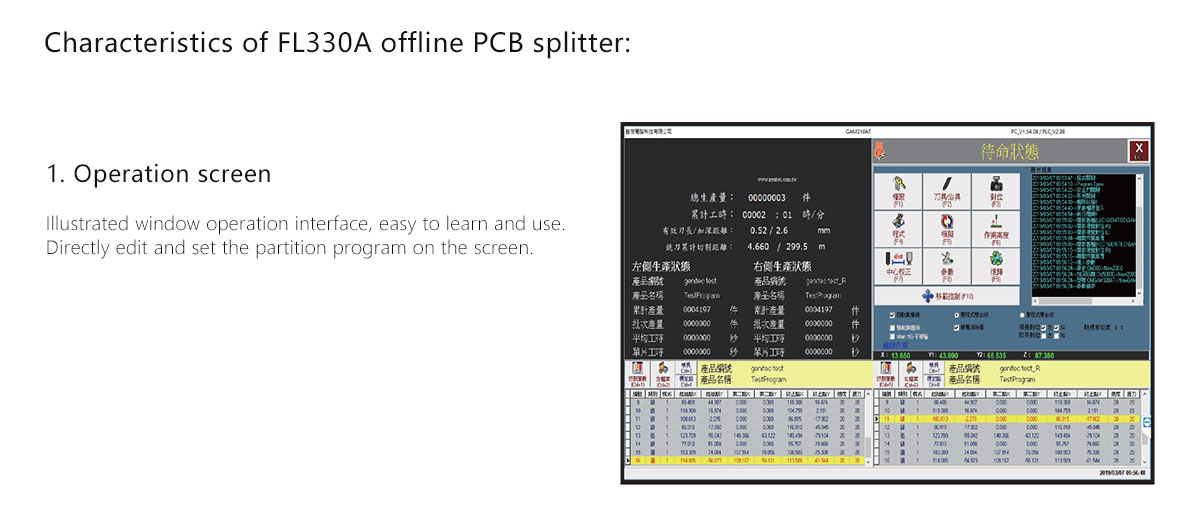

| Program teaching mode | Intuitive teaching by CCD color image input |
| Cut speed | 1-100mm/s |
| Milling bit size | 0.8-3.0mm |
| Pneumatic pressure requirment | 0.6MPa，160L/min |

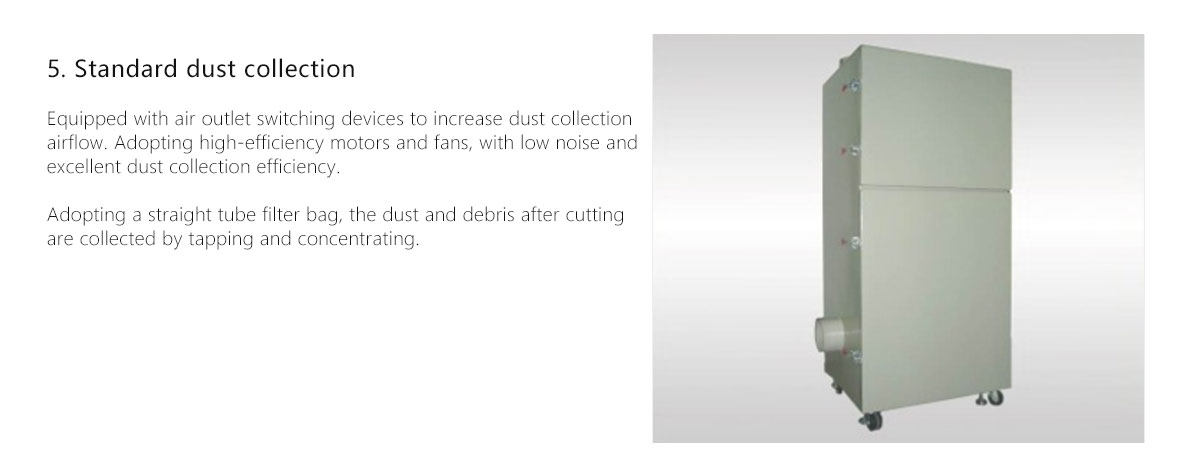

| Dust Collector | TS300L |

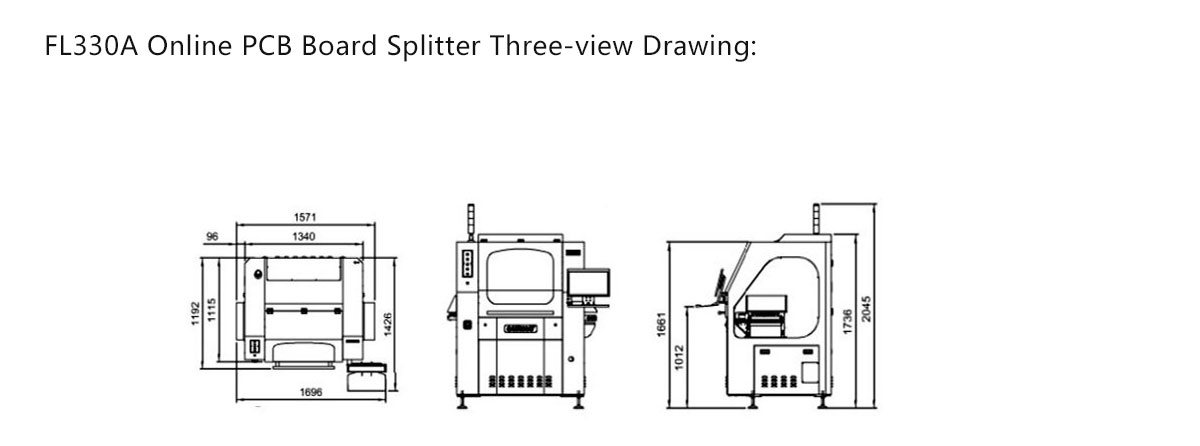

| Cut spindle size(W*D*H) | 2105*1445*1705mm |
| Voltage/Power requirement | AC220V，1phase,50/60HZ，4KW |
| Weight | 800KG |
