FL-330 offline automatic PCB slitting machine introduction:

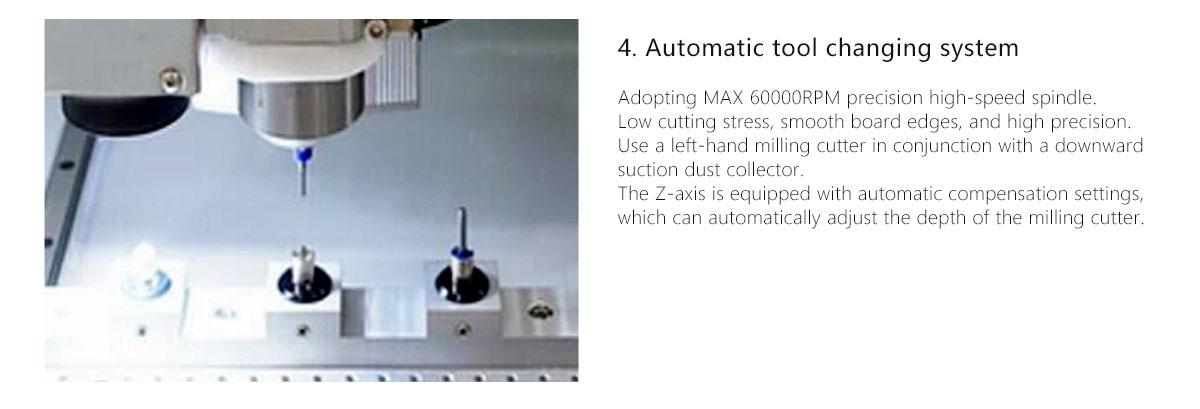

(1) Equipped with an automatic tool changing mechanism, Da Fu improves operational efficiency.
(2) The entire series is equipped with a high-speed CCD visual automatic correction system, which improves cutting accuracy and operational efficiency with large radiation.
(3) Using high-speed spindle for PCB cutting and splitting, with low cutting stress, high accuracy, and suitable for any shape of circuit board.

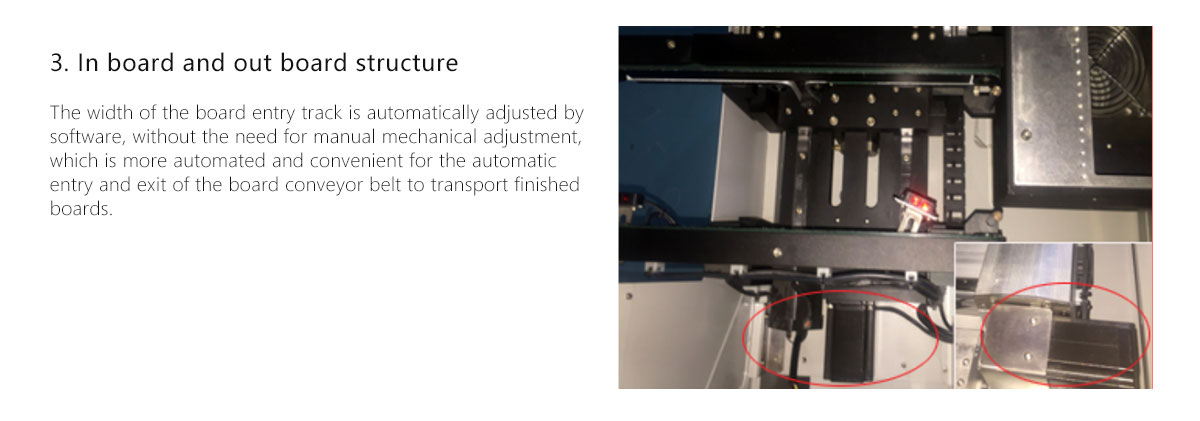

(4) Double table movement, capable of simultaneously performing board cutting and circuit board placement, improves work efficiency.

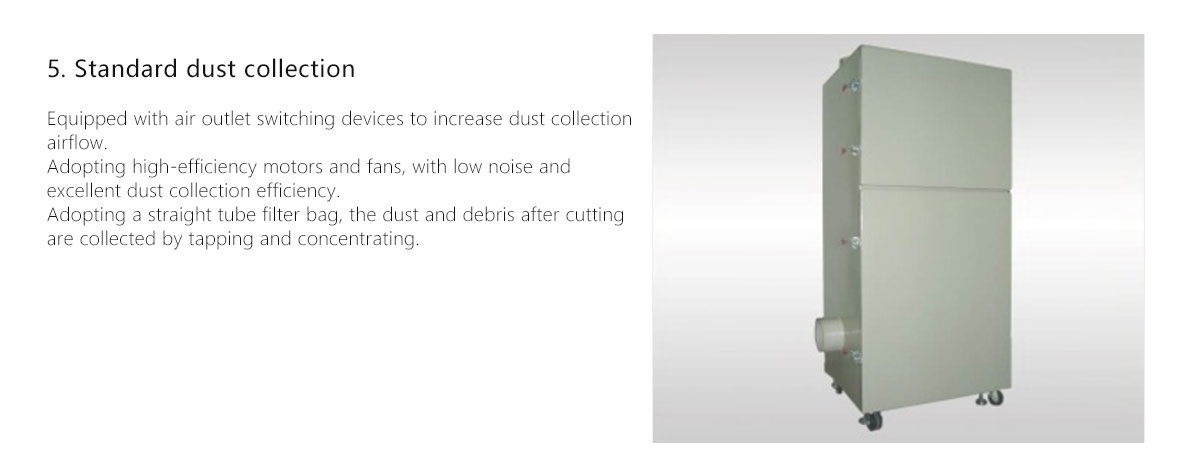

(5) Patent efficient dust collection device, low noise to improve efficiency, easy maintenance and cleaning.

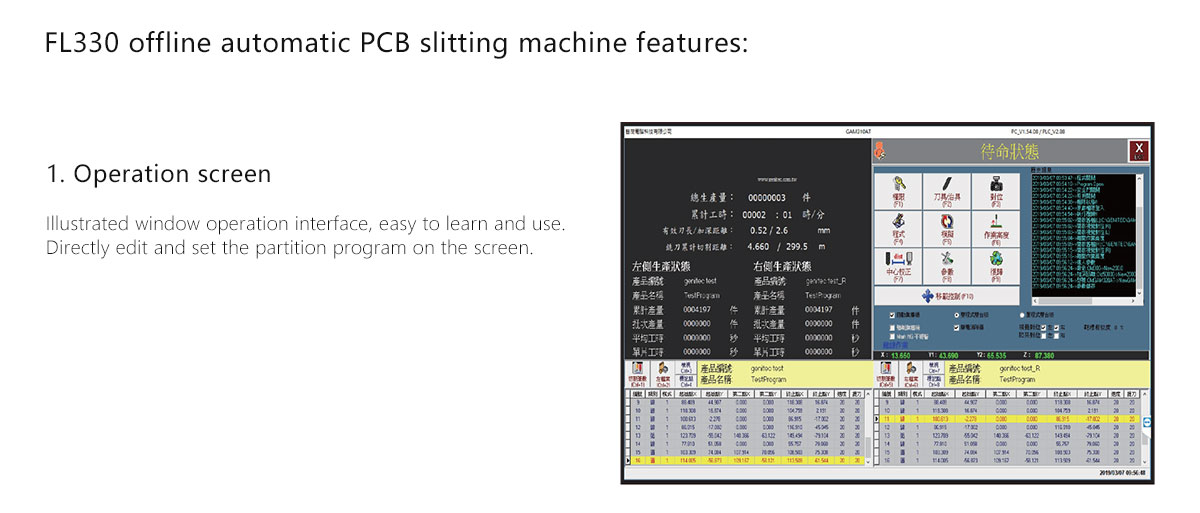

(6) Windows Windows operating system, safe, stable, easy to learn and use.
Application of FL-330 offline automatic PCB slitting machine:
(1) The entire series is equipped with a high-speed CCD visual alignment correction device, which is particularly suitable for high-precision and high-capacity PCB board splitting operations.
(2) Suitable for mobile phones, car electronics GPS、 PCB board division for various small multi connected boards such as circuit boards.
(3) Expanding the size is suitable for processing large circuit boards such as digital TVs, PC hosts, workstations, servers, etc.
(4) Standard fixtures or specialized fixtures can be used to assist in board cutting and increase production capacity.
(5) Using dual work platforms to place workpieces reduces waiting time and increases production capacity.
Product parameters:

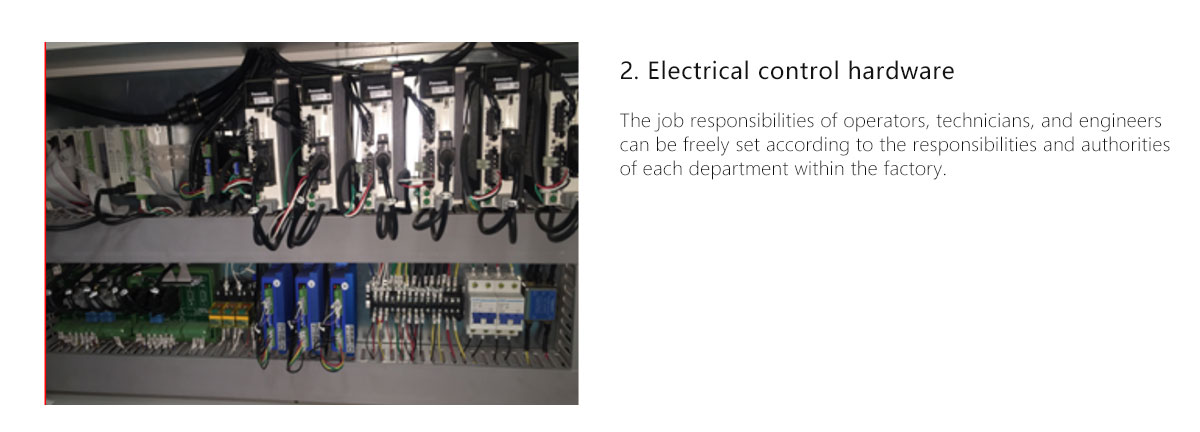

| Item | FL-330 | FL-330L | FL-330X |
| Valid cutting size | 300*350mm | 450*500mm | 470*650mm |
| Cutting function | Linear, circular, and arc interpolation | ||
| Processing table | Dual tables | ||
| Repeat Precision | ±0.01mm | ||
| Cutting Precision | ≦±0.05mm | ||
| Maximum Moving Speed | XY Axis:1000mm/s、Z Axis:500mm/s | ||
| Maximum Travel Distance | X:800mm, Y:490mm, Z:90mm | X:1090mm, Y:690mm, Z:90mm | X:1090mm, Y:790mm, Z:90mm |
| Spindle Speed | MAX.60000rpm Adjustable | ||
| Spindle Tool Change Method | Automatic tool changer | ||
| Tool Detection | Equipped with automatic broken tool detection | ||
| Cutting Speed | 0~100mm/s Adjustable | ||
| Operating System | Windows10 | ||
| Program Teaching Method | Intuitive teaching by CCD color image imput | ||
| Program Backup | USB Interface | ||
| Control Method | Precision three-axis control system | ||
| XYZ Axis Drive Method | AC servo motor | ||
| Applicable Router bit Size | 0.8~3.0mm | ||
| Main Power Supply Specification | 2.2KW Single phase | ||
| Main Air Supply Requirement | 0.6Mpa ，75L/min | ||

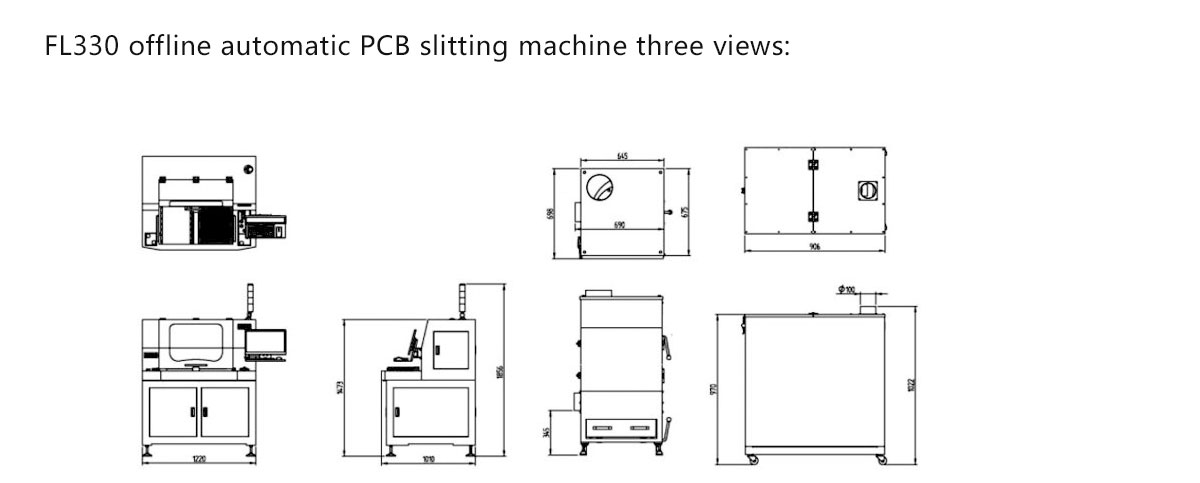

| Dimensions | 1220*1150*1458mm | 1500*1497*1453mm | 1510*1650*1453mm |
| Weight | 480kg | 600kg | 660KG |
