Introduction to FL-320 Offline PCB Splitting Machine:
(1) The entire series is equipped with a high-speed CCD visual automatic correction system, which improves cutting accuracy and operational efficiency with large radiation.
(2) Using high-speed spindle for PCB cutting and splitting, with low cutting stress, high accuracy, and suitable for any shape of circuit board.
(3) Double table movement, capable of simultaneously performing board cutting and circuit board placement, improves work efficiency.

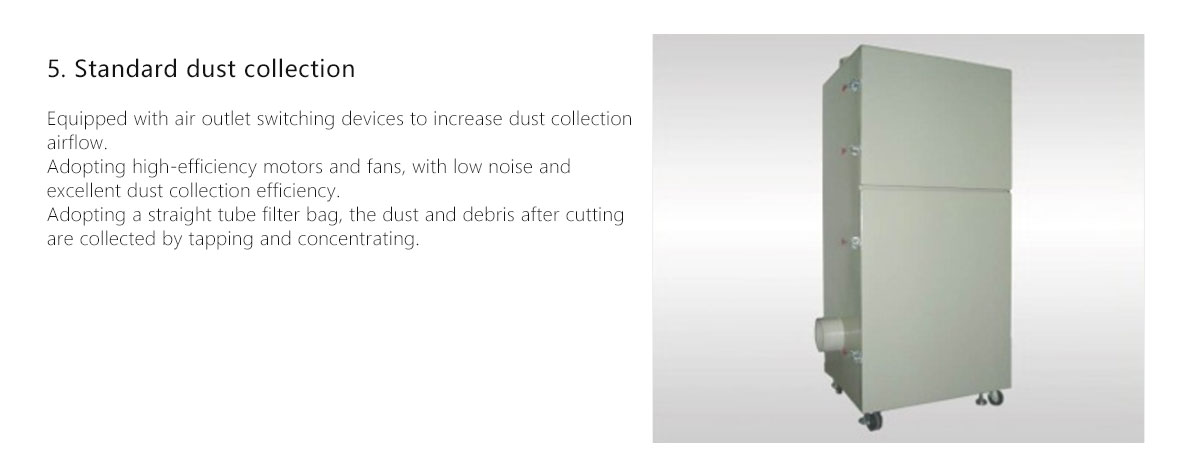

(4) Patent efficient dust collection device, low noise to improve efficiency, easy maintenance and cleaning.

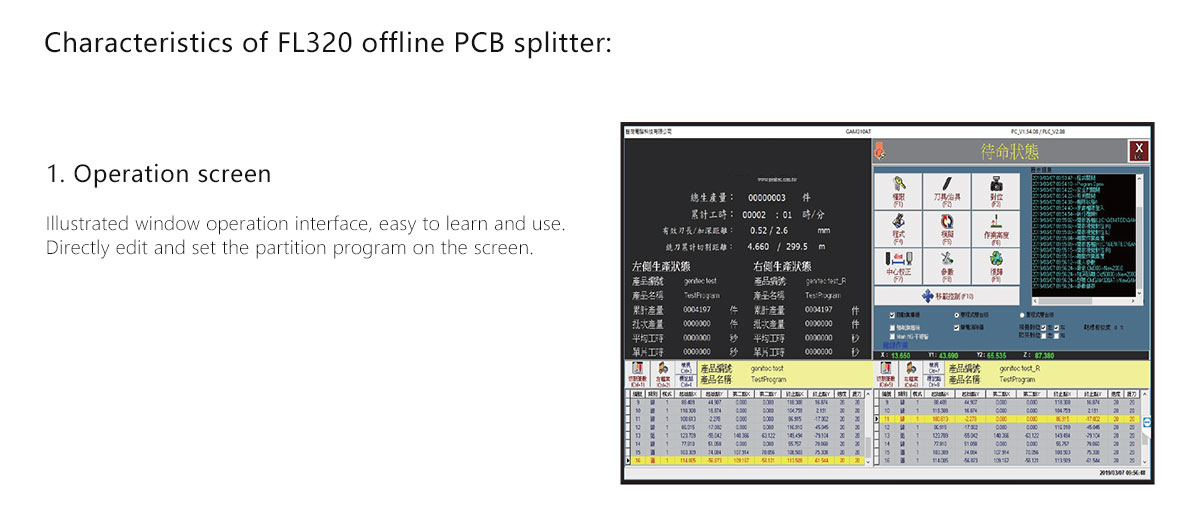

(5) Windows Windows operating system, safe, stable, easy to learn and use.
Application of FL-320 offline PCB splitter:
(1) The entire series is equipped with a high-speed CCD visual alignment correction device, which is particularly suitable for high-precision and high-capacity PCB board splitting operations.
(2) Suitable for small multi connected PCB boards such as mobile phones, digital cameras, GPS, PDA, and MODULE.
(3) Expanding the size is suitable for processing large circuit boards such as digital TVs, PC hosts, workstations, servers, etc.
(4) Standard fixtures or specialized fixtures can be used to assist in board cutting and increase production capacity.
(5) Using dual work platforms to place workpieces reduces waiting time and increases production capacity.
Product parameters:
| Item | FL-320 | FL-320L |
| Valid cutting size | 350*300mm（Dual Worktable Combined to 700*300mm） | 450*500mm |
| Cutting function | Tweening to Straight Line, L-Shaped, U-Shaped, Circular, Arc | |
| Processing table | Dual tables | |
| Repeat precision | ±0.01mm | |
| Cutting precision | ≦±0.05mm | |
| Max moving speed | XY:1000mm/sec，Z:600mm/sec | |
| Max travel stroke | X:810mm,Y:315mm,Z:90mm | X:1010mm,Y:570mm,Z:90mm |

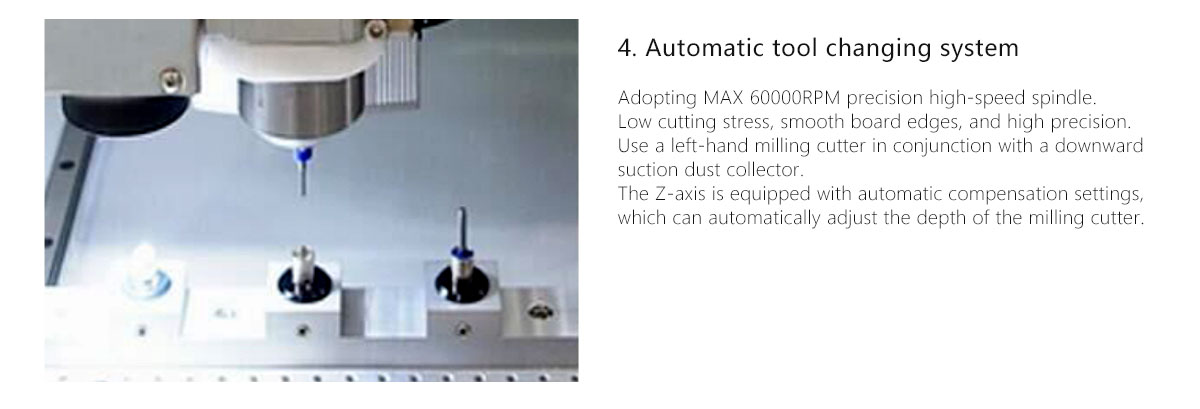

| Spindle speed | MAX80,000rpm | |
| Main Power Supply Specifications | AC220V 50/60HZ 2.2KW Single phase | |
| Cutting Speed | 1-100mm/s Adjustable | |
| Operating System | Windows10 | |
| Programming Method | Intuitive teaching by CCD color image input | |
| Program Backup | USB | |

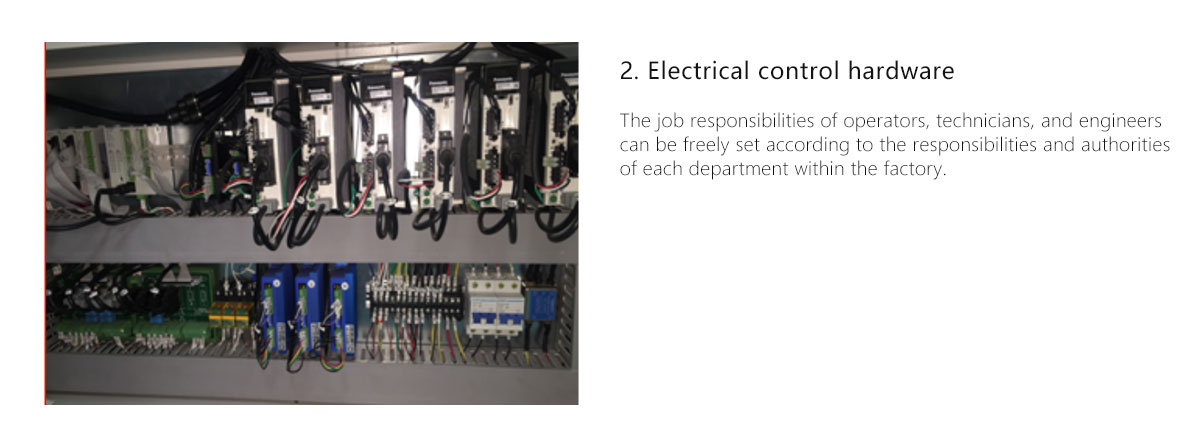

| Control Method | Precision multi-axis control system | |
| XYZ Axis Drive Method | AC Servo motor | |
| Compatible Router Bit Size | φ0.8-3.0mm | |

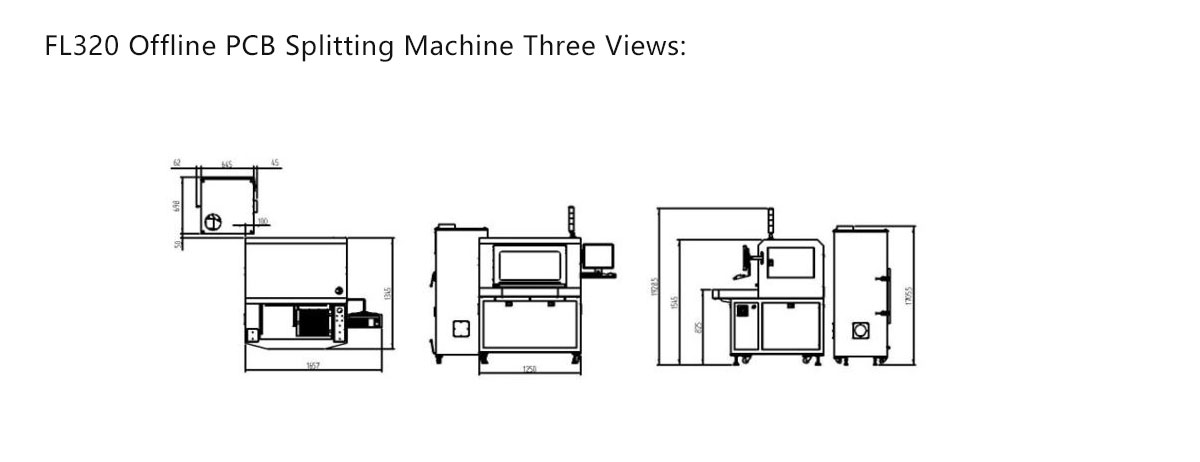

| Dimensions | 1285*1340*1490(mm) | 1445*1670*155O(mm) |
| Weight | 530KG | 610KG |
| Standard Dust Collector | Bottom dust collector3HP/Upper dust collector 4HP | TS200L |
