Product Introduction:
(1) Automatically detect area, position, foreign objects, presence of holes, and tension;
(2) High detection accuracy and wide detection range;
(3) Import GERBER data, modular data structure, and immediately detect and view results within 2-3 minutes;
(4) By measuring parameters such as the size and position of steel mesh openings, setting an error range, and comparing it with reference values to
determine if it is qualified;
(5) The operation is simple and fast
Testing items:
Detection of hole defects such as hole deviation, hole accuracy, shape, porosity, porosity, area error, edge burrs, etc.

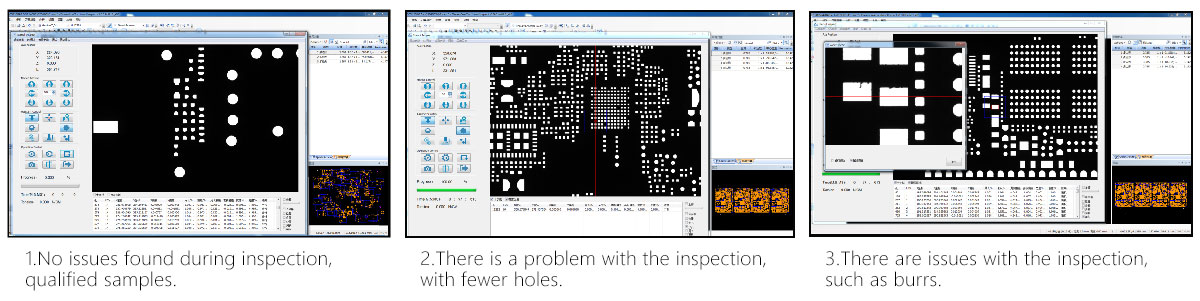

Application case:
Product parameters:
| Project | FAM500 Fully Automatic Visual Steel Mesh Inspection Machine |
| Measurement project | Opening area, position, offset, size, foreign objects, burrs, blocked holes, few holes, multiple holes, tension |
| Measure time | 3.5min (130mm × 100mm standard, data: 25122 holes) |
| Measurement accuracy of opening area | Gage R&R<5.0% (actual measurement shows GR&R<1-2% or less) |
Measurement accuracy of opening position | ±10μm |
| Accuracy of transmission mechanism | Repetitive ± 4μm servo system (resolution: 0.5μm) |
| Tension detection | ± 0.1N.cm, tension range 0-50N.cm |
| Camera | 5 million/1 million (default)/12 million/2 million |
| Lens | Dual telecentric lens |
| Lighting | Special white LED light source (long strip light source) |
| Resolution | Default 6.6μm, customizable |
| FOV | 25mm x 18mm (optional) |
| Electrical machinery | Linear motor |
| Platform | Marble platform |
| Scan range | 550mm*550mm |
> Customization can be made according to customer needs.
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
