Reflow soldering furnace FRO series

Reflow soldering FRO series features:

• Adopting double-sided guide rails and special hardening treatment, it is sturdy, durable, and highly interchangeable;

• Adopting stainless steel chain with edge guard and anti jamming plate, practical and reliable;

• New flux recycling system, fully modular design, easy and fast maintenance, reducing maintenance time and costs;

• Patent hot air system, with more efficient hot air convection and faster thermal compensation;

• New furnace structure design, multi-layer insulation, effectively reducing working environment temperature.

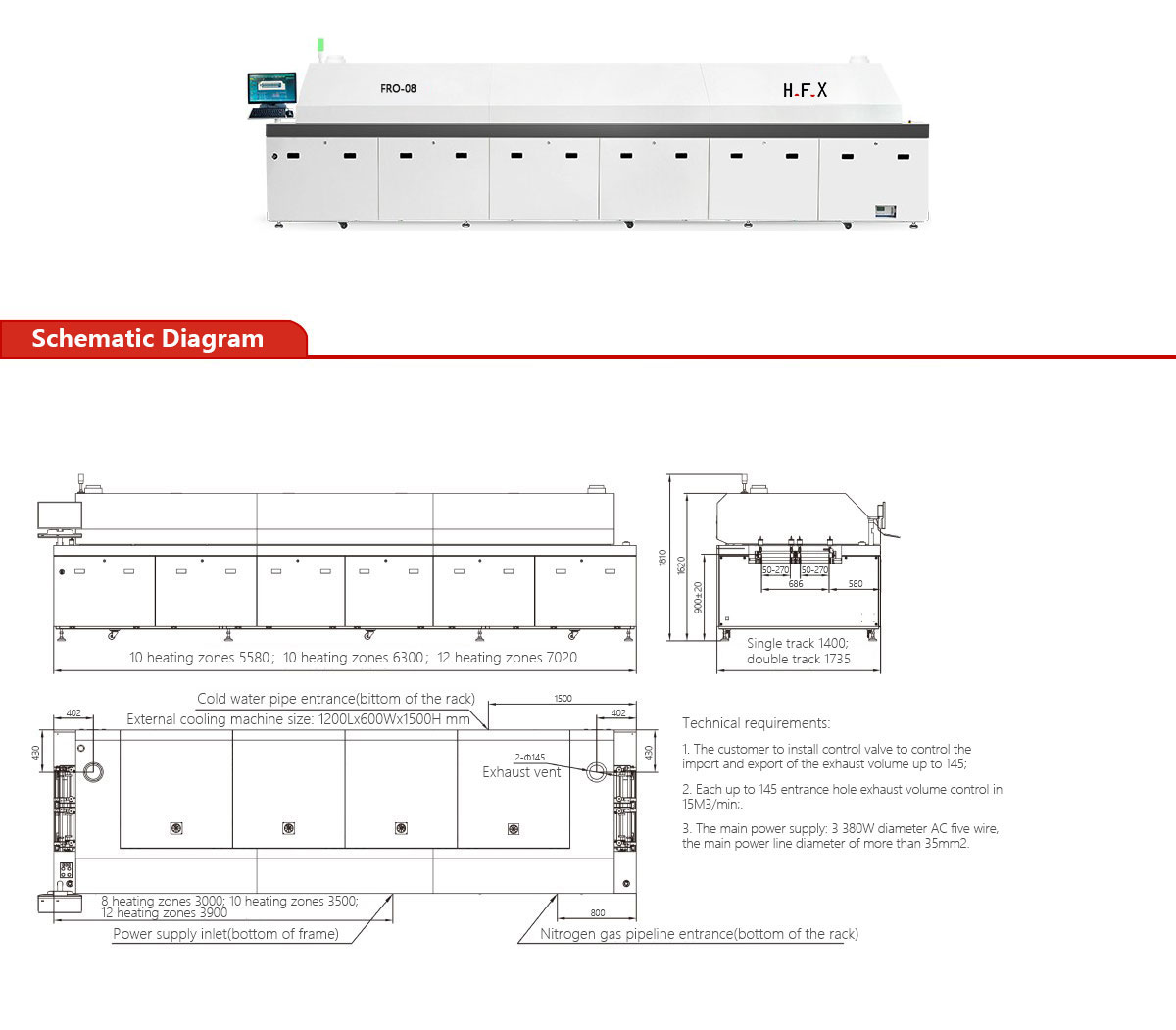

Product parameters:

SST series rel low oven main speci lica   lions
Model No	FRO-08A/SST-08N	FRO-10A/SST-10N	FRO-12A/SST-12N	FRO-08DA/SST-08DN	FRO-10DA/SST-10DN	FRO-12DA/SST-12DN
Heating System
Heating Zone	8 Heating Zones，16 Heating moudules	10 Heating Zones，20 Heating moudules	12 Heating Zones，24 Heating moudules	8 Heating Zones，16 Heating moudules	10 Heating Zones，20 Heating moudules	12 Heating Zones，24 Heating moudules
Heating Length	3120mm	3870mm	4635mm	3120mm	3870mm	4635mm
Cooling Type	Three coaling zones:forced air   cooling/water coaling
Outlet Exhaust Demand,Valume	2-Φ145， Exhaust demand15m³/minx   2
Conveyor System
Product Width	min50mm-max400mm			min50mm-max270mm（Dual track simultaneous）min50mm-max500mm（Dual track single use）
Conveying Direction	L→R，R→L
inlet Height	900±20mm
Fixed Rail Side	Front rail Fixed(Option：Rear Rail   Fixed)			Front and Rear Rails Fixed，central   two rails are movavle
Conveyor Type	Chain+mesh belt synchronous   transmission
Cmponent Height	Clearance based on the rail：above   30mm， below 25mm
Conveying Speed	300mm-2000mm/min
Control System
Power Supply	AC3Φ，5W,380V,50/60HZ
Total Power	59KW	73KW	91KW	70KW	89KW	108KW
Start up Power	30KW	35KW	40KW	35KW	40KW	45KW
Running Power	7.5KW	9.5KW	11.5KW	10KW	11.5KW	13KW
Temperature Range	Room temp to 320℃
Control Type	PC+PLC Control System
Rail Width Adjusting Mode	Electric+Manual
Temp Control accuracy	±1℃
PCB Temp Deviation	±1℃			±2℃
Data Storage	Process Data and status stotage
Power Outage Protection	Equipped with UPS
Operation Interface	Windows Chinese simplified， English   online free switching
General
Dimension（L×W×H)	5580*1450*1620	6300*1450*1620	7020*1450*1620	5580*1735*1620	6300*11735*1620	7020*1735*1620
Weight	2200-2400kg	2600-2800kg	3000-3200kg	2700-2900kg	3000-3200kg	3300-3500kg
Color	Bright wrinkled white

FAQ:

Q: What is reflow technique?

A: Reflow soldering is a fundamental technique in electronics assembly. It involves heating solder paste to a controlled temperature, allowing it to melt and form secure electrical connections between components and printed circuit boards (PCBs) during the surface mount technology (SMT) process.



Q: Why do you use flux when soldering?

A: Flux is used in soldering to remove oxides, contaminants, and promote wetting of the solder. It ensures a clean, reliable solder joint by facilitating the flow of molten solder and preventing defects like solder bridges or cold joints.



Q: Why is it called reflow soldering?

A: Reflow soldering gets its name from the process of "reflowing" or melting the solder paste. During reflow, solder paste transitions from a solid to a liquid state, forming precise and reliable connections between components and PCBs.



Q: How many times can you reflow a PCB?

A: Reflowing a PCB multiple times is generally not recommended. Each reflow cycle can subject components to thermal stress and potentially affect solder joint integrity. Minimizing the number of reflows helps ensure the reliability of electronic assemblies.
