Introduction to FL310 Single Workbench PCB Splitting Machine:
(1) A single workbench has a small footprint and high applicability.
(2) Configure a high-speed CCD visual automatic correction system to improve recognition efficiency.

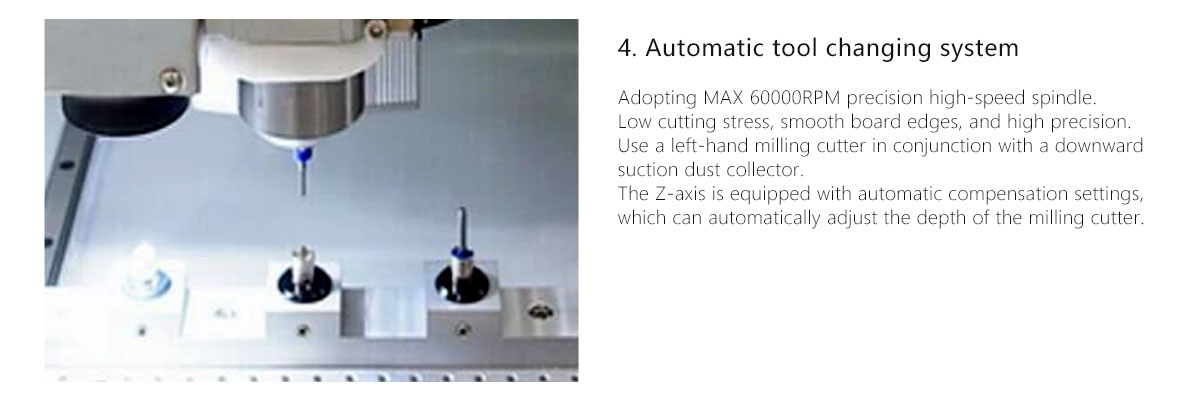

(3) Adopting imported high-speed spindle, with low cutting stress and high accuracy.

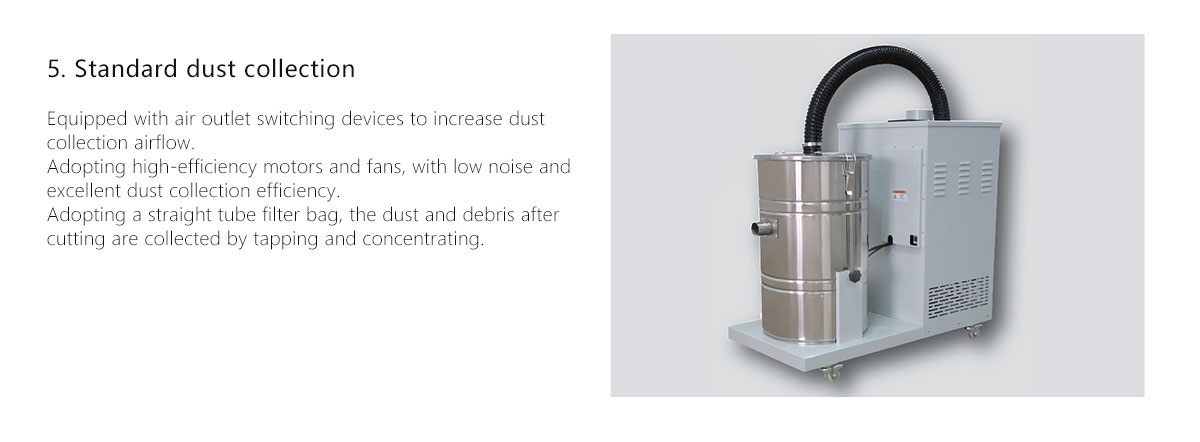

(4) Equipped with a high suction dust collector, the suction effect is excellent.

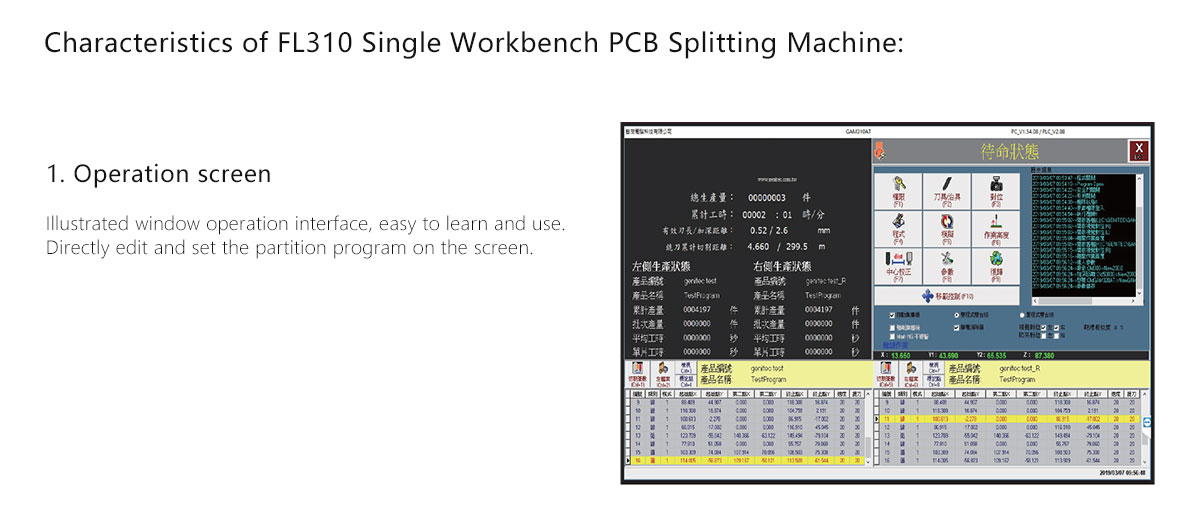

(5) Windows Windows operating system, safe, stable, easy to learn and use.
Application of FL310 Single Workbench PCB Splitting Machine:
(1) Suitable for high-precision board splitting operations.
(2) Suitable for various shapes of multi connected boards such as mobile phones, car electronics, wearable devices, and circuit boards.
(3) Special fixtures or universal fixtures can be used for board cutting.
Product parameters:
| ITEMS | FL-310 |
| Valid cutting area | 350*300mm |
| Process table | Single tables |
| Cutting function | Tweening to line, L shape, Circle, Arc |
| Repeat precision | ±0.01mm |
| Cutting precision | ±0.05mm |
| Max moving trip | X:450mm,Y:480mm,Z:90mm |
| Spindle speed | Max.80000RPM Adjustable |
| Size of milling tool | Ø0.8-3.0mm |
| Cutting speed | 1-100mm/s |
| Operating system | Windows10 |
| Program teaching method | Intuitive teaching by CCD color image input |

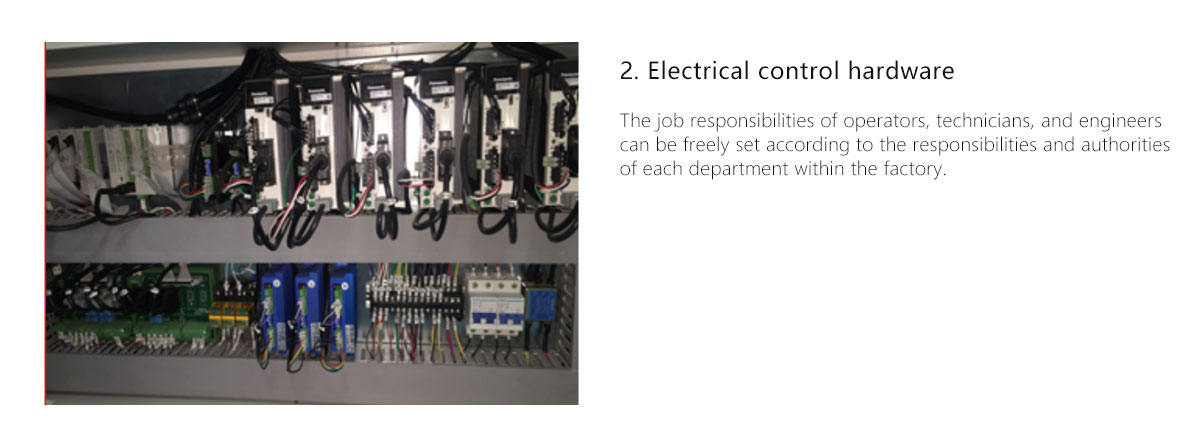

| Control method | Precision multi-axis control system |
| XYZ axis driving mode | AC Servo motor |
| Power | Single phase AC220V 50/60HZ |

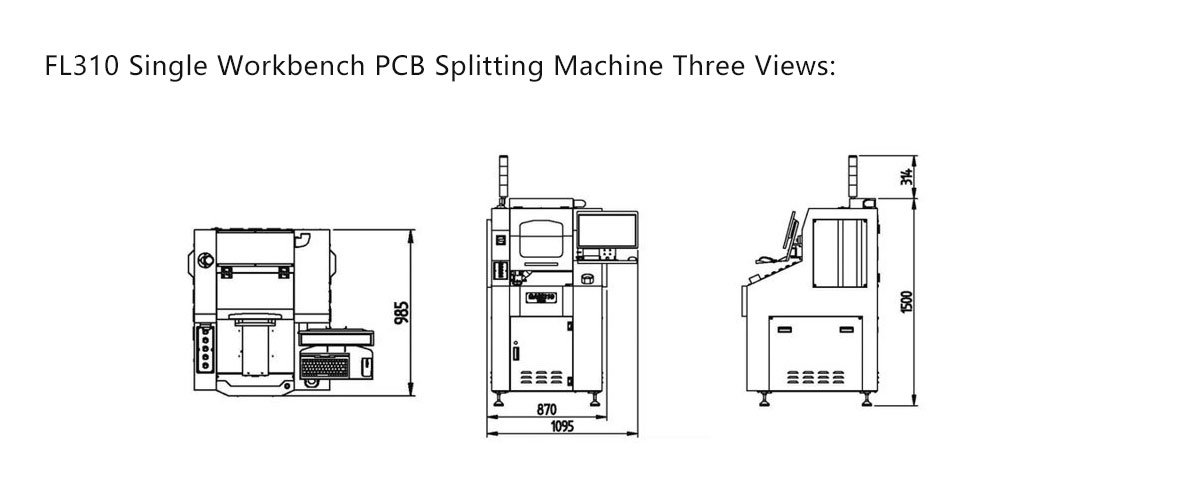

| Dimensions (W x D x H)mm | 840*1208*1530mm |
| Dust collector | TS300 |
FAQ:

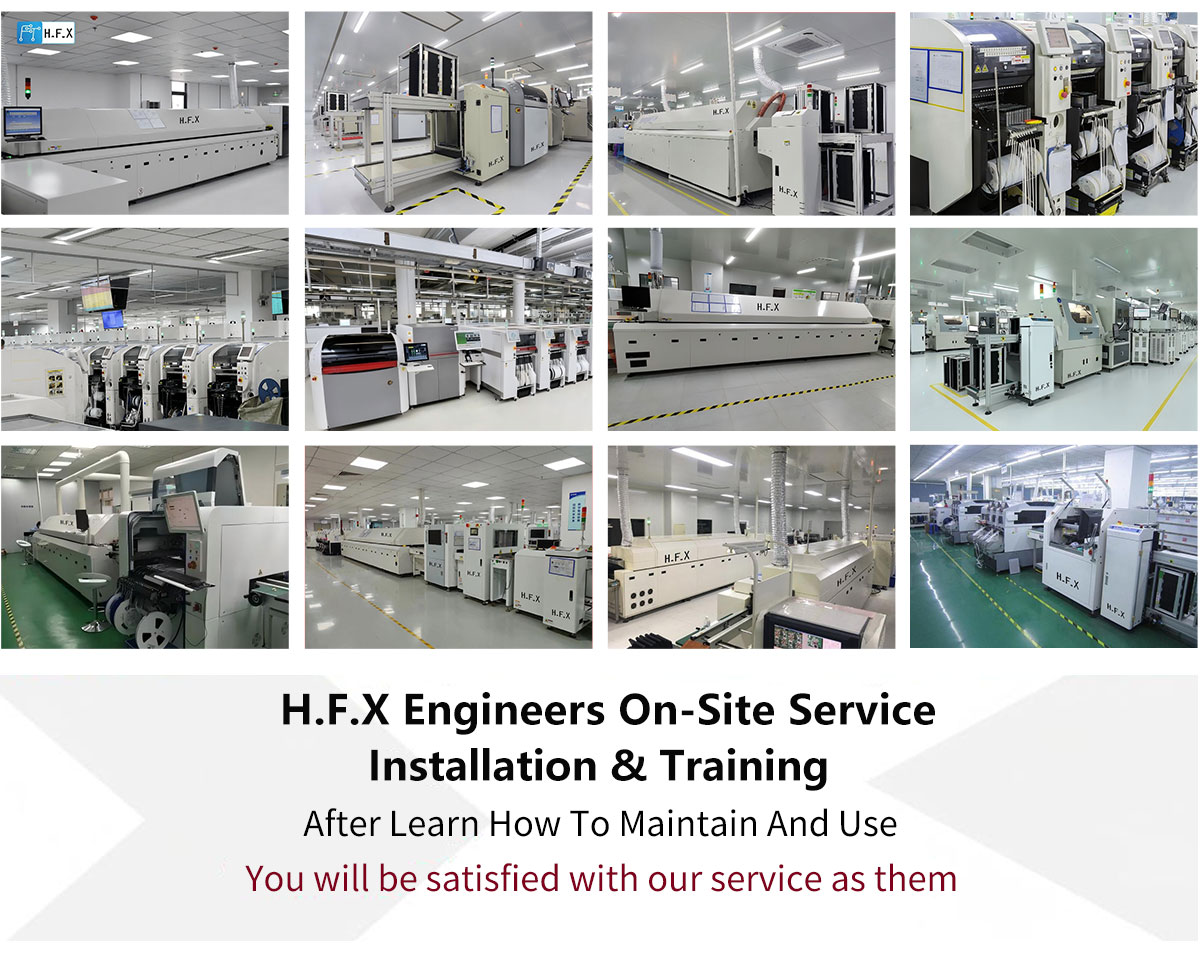

1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
