Equipment Overview:
With the development of SMT technology, the minimization of electronic components and the miniaturization of high-density mounted integrated circuits have become a reality. The future development trend will inevitably be the increasing miniaturization of electronic components. Due to factors such as solder contamination and dust blockage during chip mounting, the suction nozzle of the surface mount machine may frequently throw materials, malfunction, and shut down, which greatly affects production and leads to a decrease in production efficiency. Scientific cleaning of precision and small suction nozzles has become an urgent problem that needs to be solved.
Cleaning object:

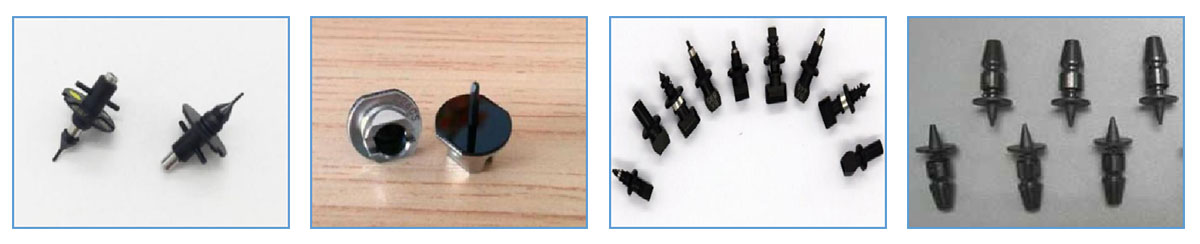

All types of surface mount machine suction nozzles can be cleaned.
Product features:
The appearance adopts a streamlined design, which is beautiful and generous.
Using 3 nozzles to sequentially clean 10 rows of 30 suction nozzles, achieving high efficiency and energy saving.
Full inspection window for easy maintenance and operation.
All parts in contact with water are made of 304 stainless steel, which is rust proof, corrosion-resistant, sturdy and stable.
Humanized design, one click start can be achieved through external buttons.
Adopting touch screen+PLC distributed control, stable and reliable performance.
Easy to operate, user-friendly interface, and can switch between Chinese and English at any time.
Equipped with misoperation alarm and emergency braking system, with overload protection system.
Use environmentally friendly and pollution-free industrial purified water (HP value 5-7 soft water) or tap water.
Centralized collection of waste for convenient maintenance and upkeep.
Add water level sensing function.
Product parameters:
| External dimensions | L598×W396×H365mm |
| Power Supply (Two Phase Two Wire) | 2P2W，220VAC ，50/60Hz， 20A（Customization supported） |
| Power supply requirements | 250W |
| Gas source pressure | 0.5-0.6MPa (during normal operation) |
| Weight | About 40KG |
| Electrical control parameters | |
| Total power | 200W |
| Control mode | Touch screen+PLC |
| Gas source | Pure compressed air |
| Injection pressure | 0.4 MPa |
| Air consumption | Below 280NL/min |
| Liquid type | Industrial purified water |
| Liquid consumption | 300cc/hour |
| Liquid storage capacity | 800cc |
| Inlet pipe/drain pipe | ￠8 / ￠6 |
| Specification of nozzle tray | Default single row with 3 suction nozzles, 10 rows with 30 suction nozzles |
| Cleaning nozzle specifications | 0402、0201 、01005、03015 |
| Noise | 35-60 dB |
> Customization can be made according to customer needs.
