Product Parameters:
| Equipment model | LM-550 |
| Application scope | PCB board, resin, FPC flexible board, soft hard bonding board, thin multilayer board, ceramic, glass, metal material, IC chip, etc |
| Printing method | Single head single-sided marking/Single head flip double-sided marking/Double head up and down double-sided marking |
| PCB Parameters | |
| Maximum board size (XxY) | 350mmx350mm |
| Minimum board size (XxY) | 50mmx50mm |
| PCB Thickness | 0.6mm-6mm |
| Entering board height | Above: 30mm Below: 30mm |
| Number of tracks | Monorail (optional double track) |
| Transmission speed | 50-3000mm/min |
| The transmission height above the ground | 900±20mm |
| Direction of transmission track | Left - right, right - left, left - left, right - right (program settings) |
| Transmission mode | One segment track |
| PCB clamping method | Edge locking substrate clamping |
| Laser head parameters | |

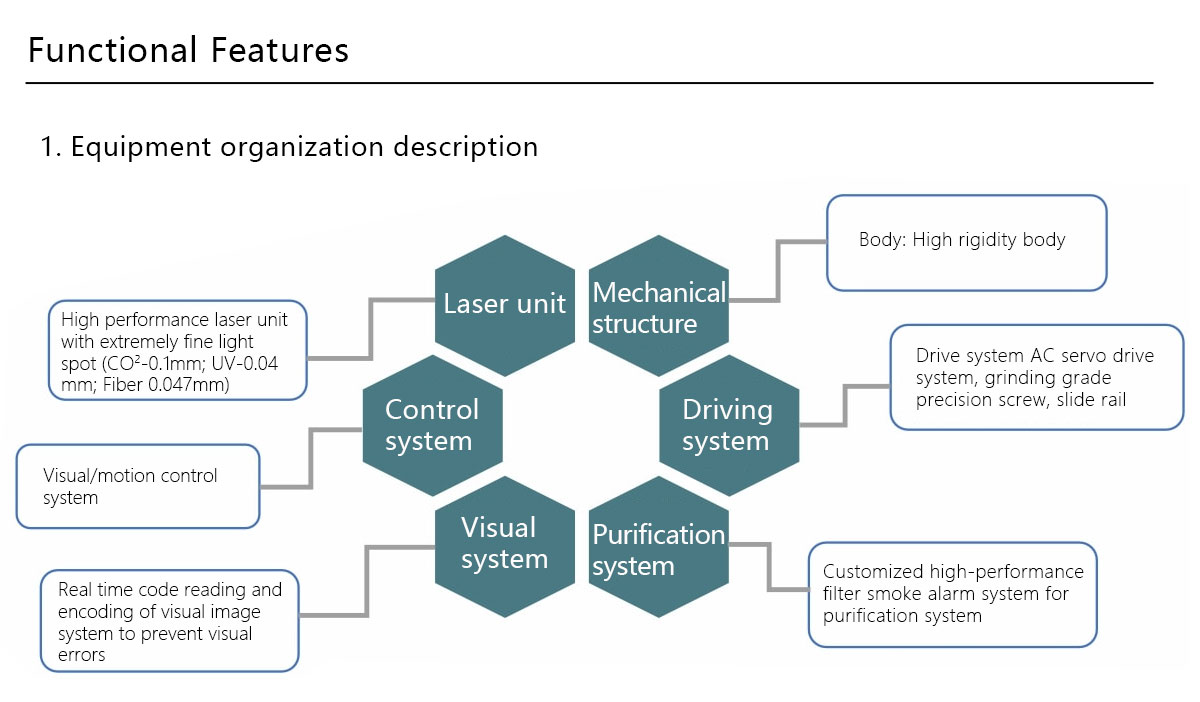

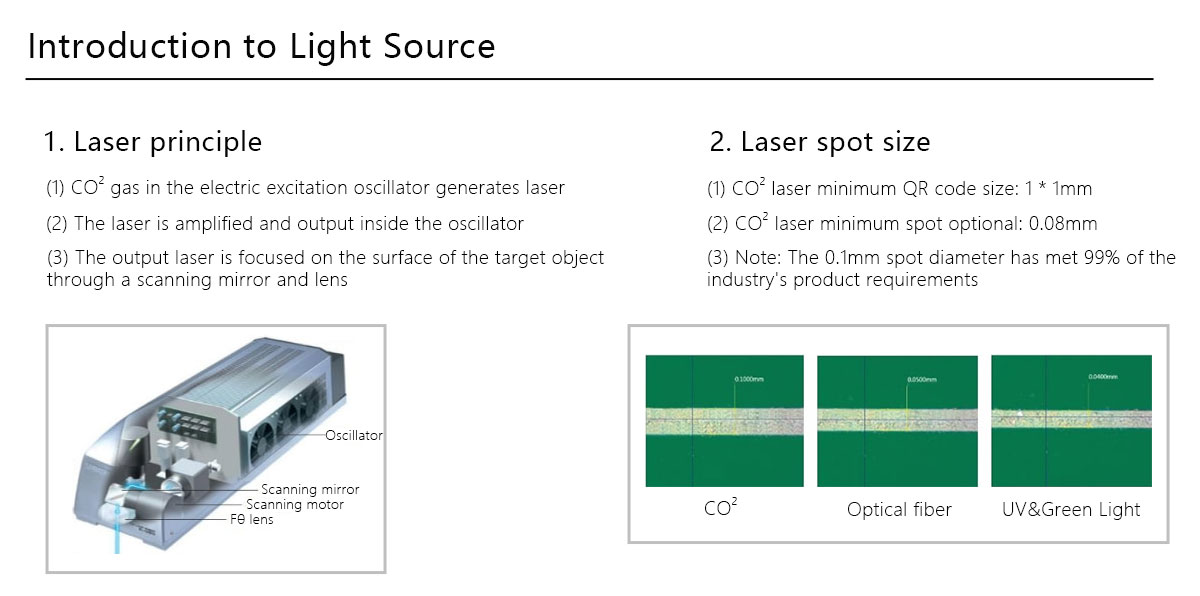

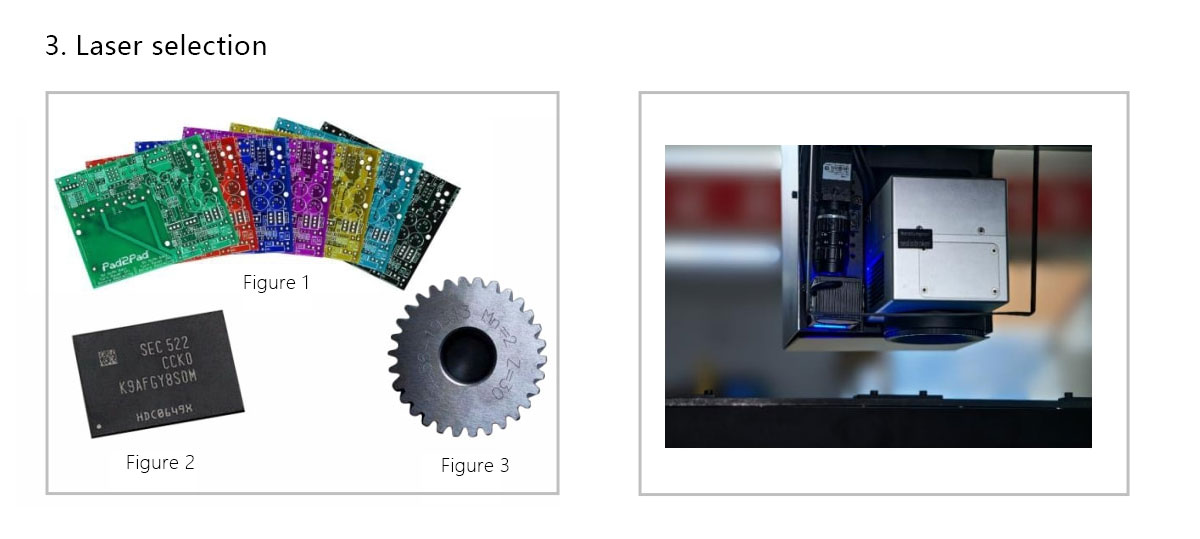

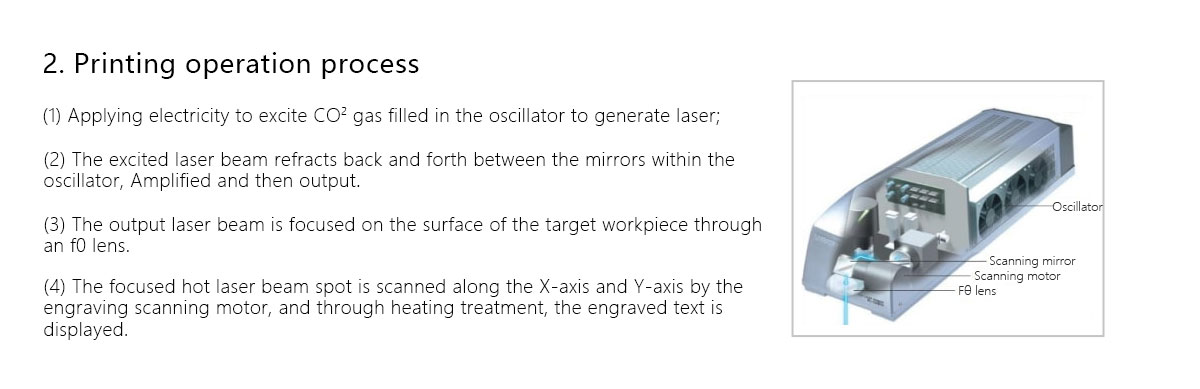

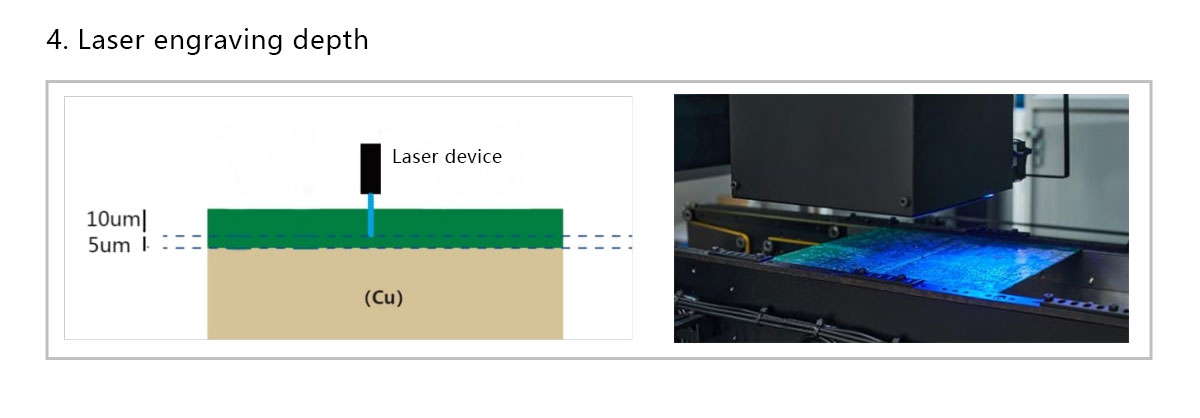

| Laser type | CO2, 5W (optional CO2: 10W or UV: 3W/5W or Keyence CO2:30W engraving head or fiber laser) |
| 3D printing | Support (optional) |
| Laser dot printing | CO2：0.1mm；UV：0.04mm |
| Cooling method | Forced air cooling |
| Wavelength | CO2: 10.64 μ m/UV Purple Wavelength: 355nm/UV Green Wavelength: 532nm/Fiber Optic: 1064nm |
| Printing range | 50x50~120x120mm (based on laser engraving head configuration) |
| Laser class | Class 4 |
| Type of engraving | |
| Type of Text | English, numbers, text, symbols, supports TrueType fonts, SHX fonts, etc |

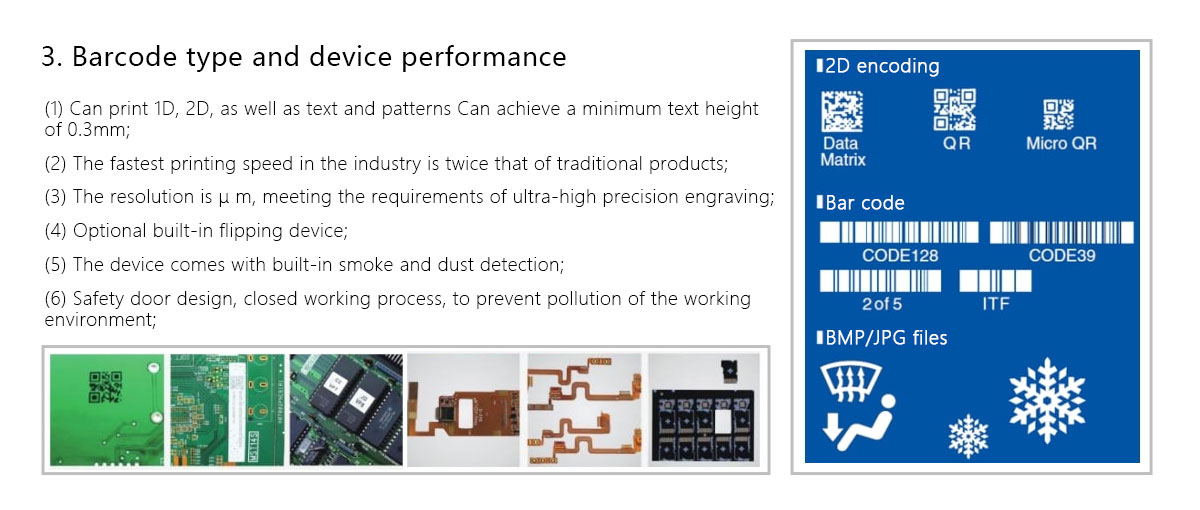

| Bar code | Code 39； Code 128； Code 93； ITF； NW-7； EAN-13； EAN-8； ISBN, etc |
| QR code | QR code; Micro QR code; DM code; GS1 data matrix; PDF 417, etc |
| Image data | DXF；BMP；HPGL；JPEG；AI；EPS |
| Performance parameter | |
| QR code size | 0.5x0.5~30x30mm (minimum QR code based on laser engraving head configuration) |
| Printing position accuracy | ±0.04mm |
| Printing and scanning speed | Maximum speed 6000~12000mm/s (based on laser engraving configuration) |
| Repeatability | ±0.02mm |
| Software Language | LaserMarking Chinese/English/Traditional Chinese |
| Programming method | PCB whole board scanning and splicing; Guided Visual Programming |
| Smoke and dust alarm system | PM2.5 smoke alarm system |
| Visual system | Optical high-precision positioning; Visual error prevention; Real time code reading detection (optional) |
| Equipment parameters | |
| Power requirements | AC220V±10%，50/60HZ，1.8kVA |
| Operating system | Windows 10 |
| Outline dimension | 800x1300x1650mm |
| Equipment weight | About 750kg |
| Power | 2.0KW |
| Air pressure | ≥0.5Mpa |
| Ambient temperature | 5~40℃；30%~ 80% RH |
| Communication method | Standard SMEMA interface |
| Data interface | Support MES, CIM, DataBase, and customer defined protocols; Automatically obtain work orders and coding information, etc |
| Data transfer protocol | HSMS, WebService, HTTP, and customer defined protocols |
