Product parameters:
| Basic parameters |
| Power | AC110~240V 50/60HZ（Customization supported） |
| Air Pressure | 90psi(6bar) |
| Machine Size | L1450*W1170*H1450mm |
| Weight | 1000Kg |
| Maximum PCB weight | 3Kg |
| Max. PCB size (Xx Y) | 600mmx500mm |
| Min.PCB size (Xx Y) | 80mm x80mm |
| PCB Thickness | 0.8mm~6mm |
| Warpage | 900±40mm |
| Max.PCB weight | 10Kg |
| Board margin gap | Configuration to 4mm |
| Maximum bottom clearance | 20mm |
| Transport speed | 1200mm/s(Max) |
| Transport height from the ground | 900±40mm |
| Transport direction | L-R,R-L,L-L,R-R |
| Transport mode | One stage conveyor |
| PCB clamping method | Clamping mode on both sides |
| Dispensing parameters |
| High speed dispensing valve (optional) | Needle dispensing valve, piezoelectric valve, screw valve, two-component screw valve |
| High speed dispensing valve (brand) (optional) | Vermes EFD Marco GD |
| lmage parameters |
|
| Field of View (FOV) | 12mm x12mm |
| Bottom Camera (FOV) | 12mm x12mm |
| Motion parameters |
| X Y Z axis positioning accuracy | X Y:±20um @3σ Z:±10um@3σ |
| X Y Z repeat positioning accuracy | X Y:±10.0μm @3σ Z:±5um@3σ |
| Maximum acceleration | 1500mm/s (XY) |
| Acceleration | 1.3G |

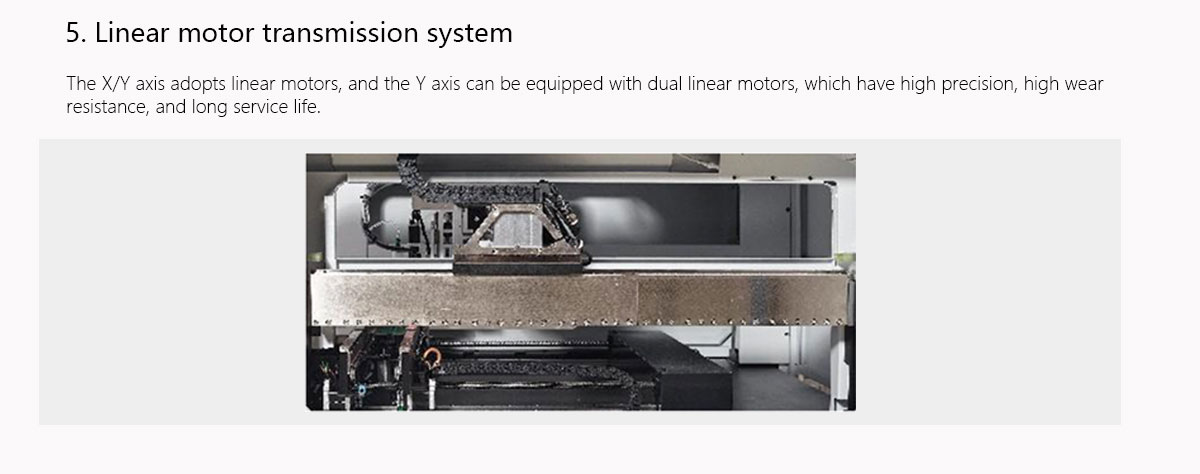

| Drive system | Linear motor (X Y) ,Servo motor (Z) |

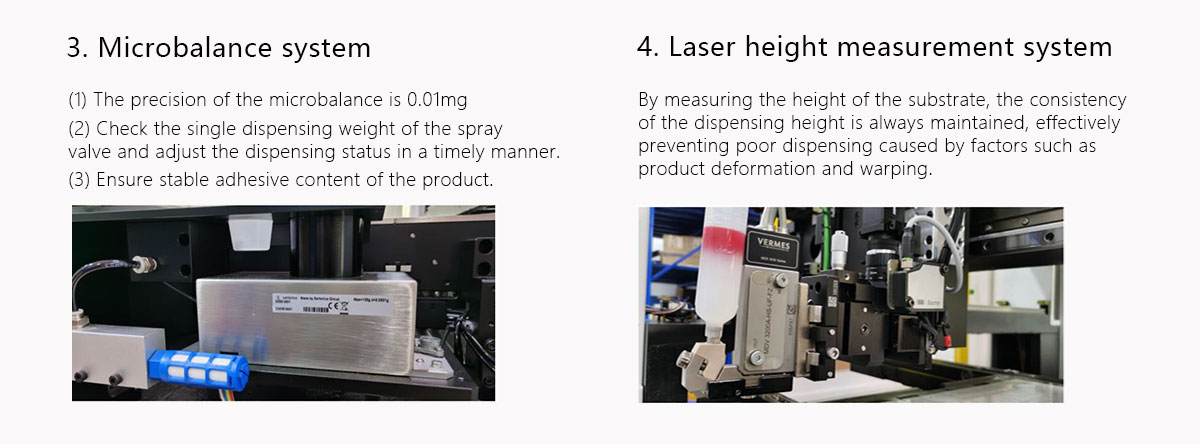

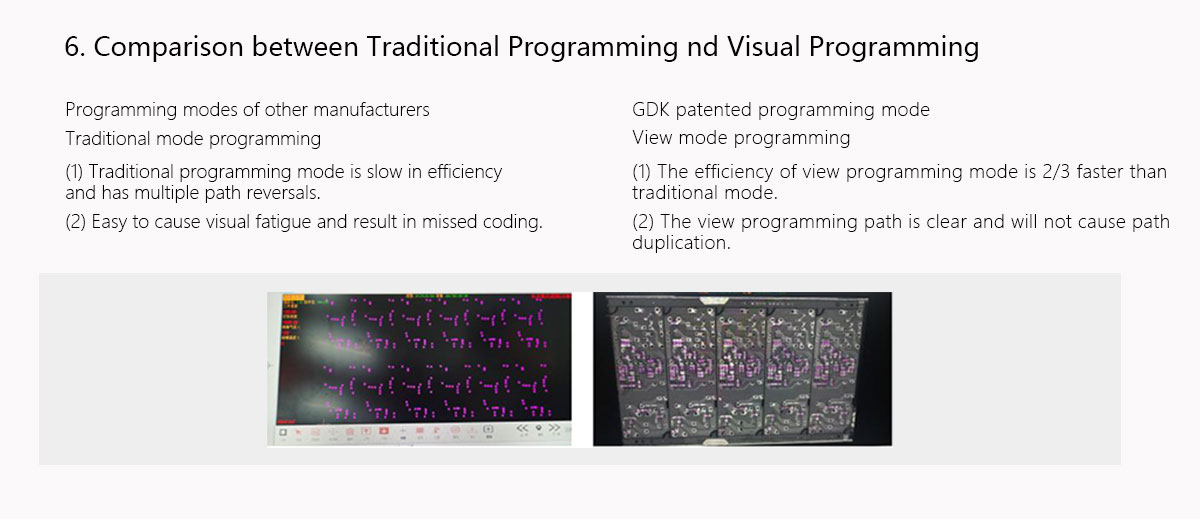

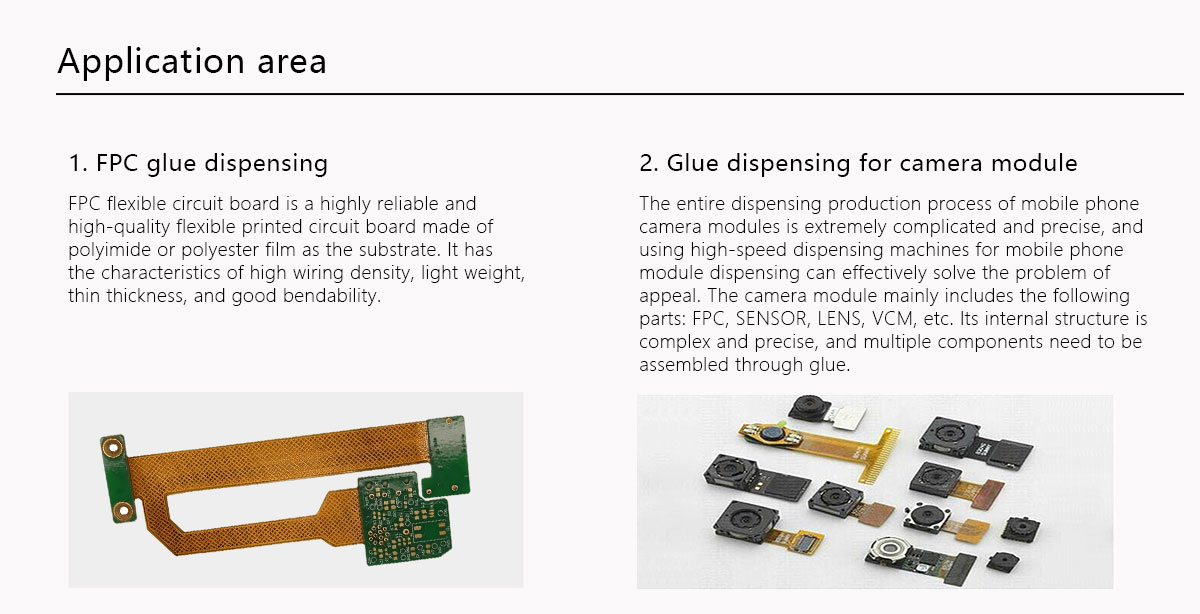

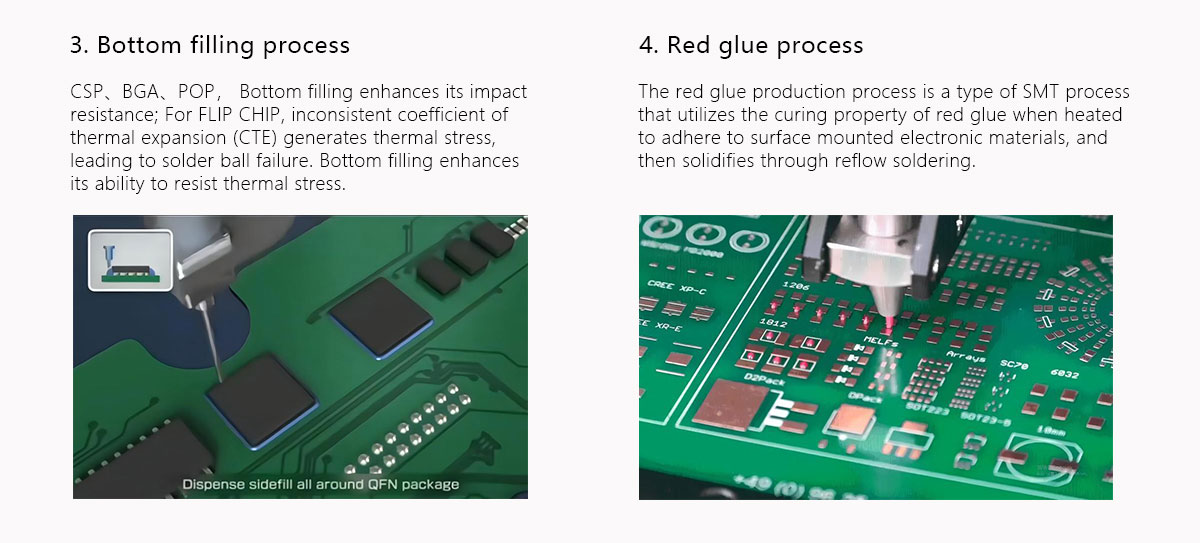

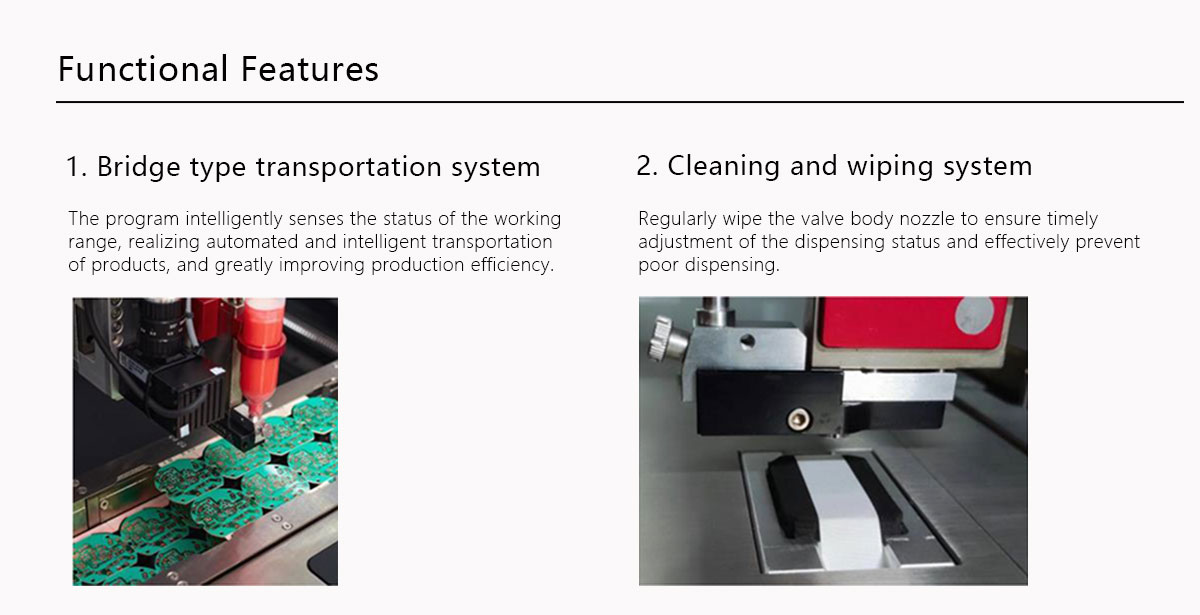

> Customization can be made according to customer needs.
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
H.F.X - Our Company
About H.F.X:
H.F.X is a leading provider of factory planning solutions and industrial inspection solutions. We have 4 wholly-owned factories that provide professional consulting and services to global customers. We have over 11 years of experience in electronic integrated solutions and industrial testing solutions. We not only provide a complete set of equipment, but also offer comprehensive technical support and services, and provide customers with more reasonable professional advice. We help many clients establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We will establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We are trustworthy.
Exhibition：
For SMT factory setup and industrial non-destructive testing, we can provide you with:
1. We provide you with complete SMT solutions and industrial testing solutions
2. We Provide Core Technology With Our Equipments
3. We provide the most professional technical services
4. We have rich experience in establishing SMT factories and industrial testing
5. We can solve any problems related to SMT and industrial testing
H. F.X-DK-800 | High precision online jet dispensing machine
