Product features:
1. Online PCBA AOI after the furnace.
2. High inspection rate, low false alarm rate, automatic inspection of color ring resistors, capacitors, diodes, sockets, etc.

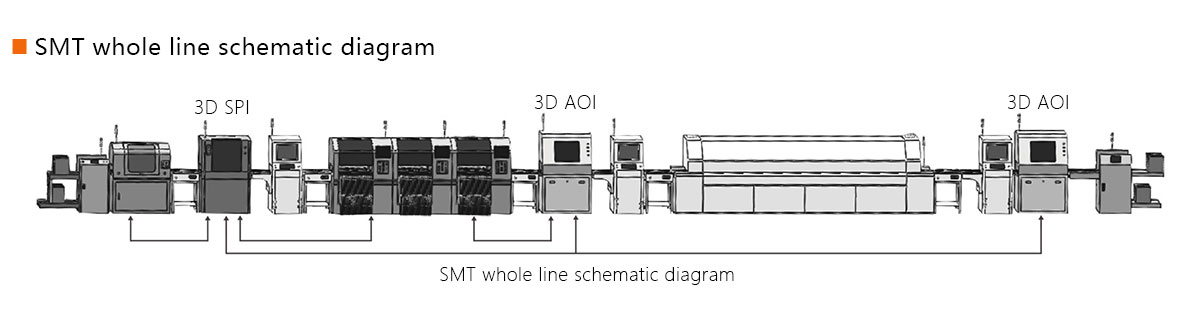

3. Cross installation without changing the production line.

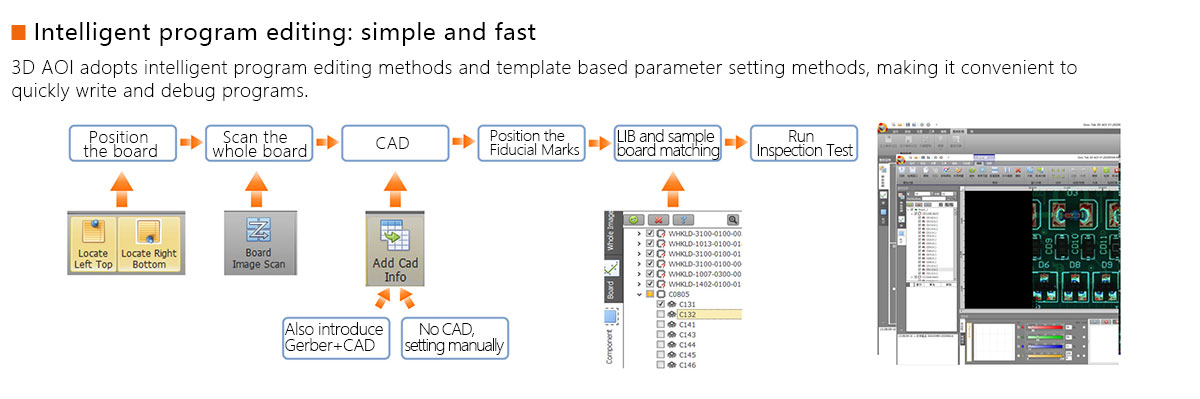

4. Simplified programming process, very simple interface. Support one click batch modification of parameters.
5. Centralized control. Interconnection between multiple devices.
6. Real time inspection without stopping the machine.
7. Easy to move, adjustable height and width.
8. Quickly locate defects and control the production line.
9. Data traceability. Support SPC alarm, LOG automatic collection and storage function, NG warning/alarm function, remote programming&debugging.
Product parameters:
| Technology Platform | Single lane Type-c Platform |
| Series | A Series |
| Model | AI510 |

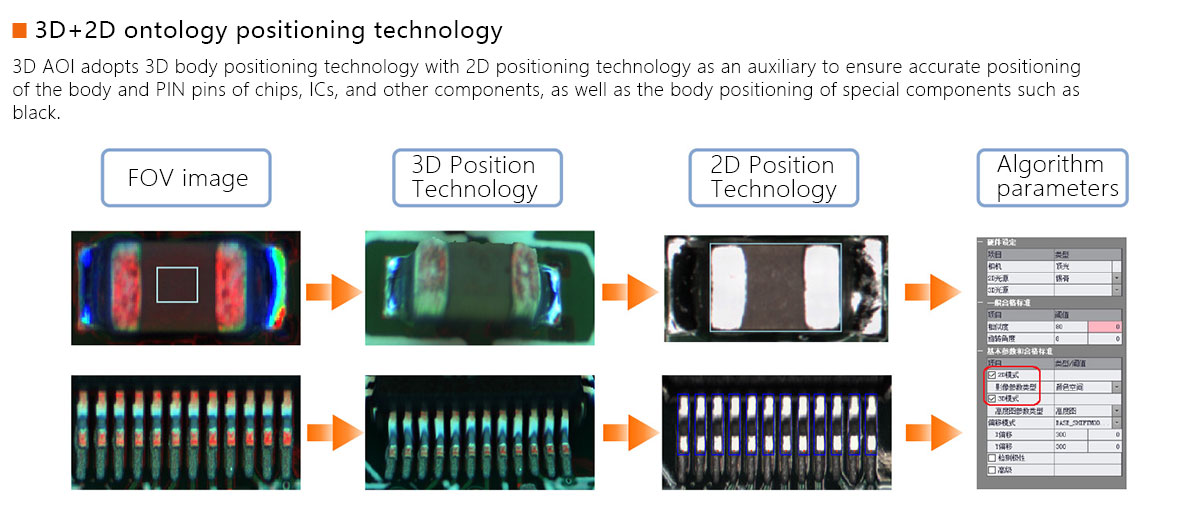

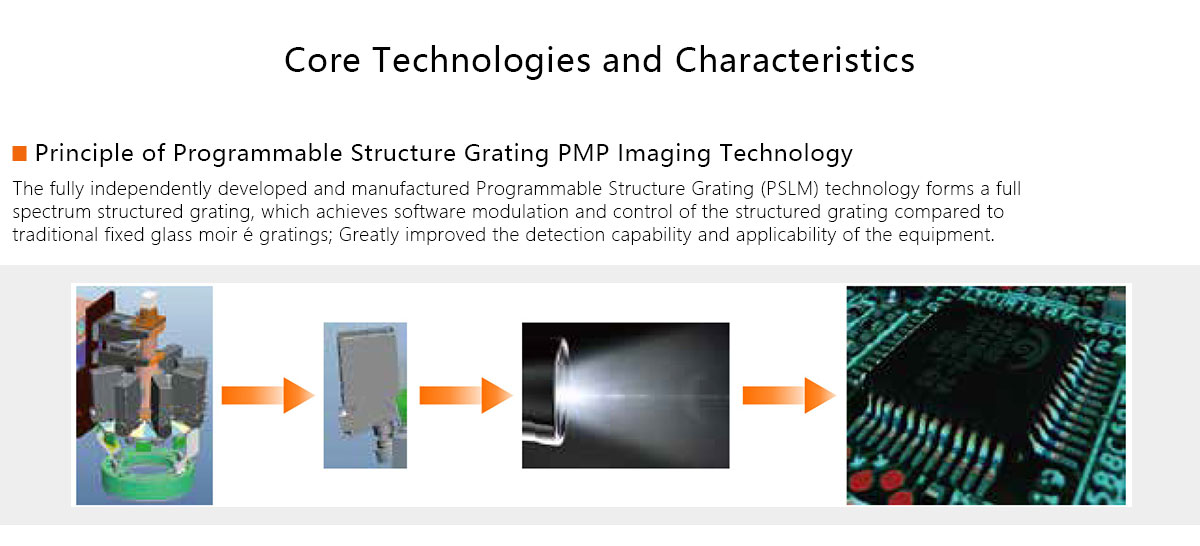

| Measurement Principle | Sine white projectionPMP inspection |
| Measurements | Missing parts,offset,rotation,three-dimensional polarity, upside down, OCV, side standing, tombstone, poor soldering, etc. |
| Detection of Non-Performing Types | Solder tip, solder volume percentage,excessive solder, insufficient solder, bridge, hole plugging, solder filet, pad contamination, etc. |
| Lens Resolution | 6.5M 13.5μm/16.5μm option; 12M 12μm/15μm option |
| Accuracy | XY(Resolution):10um |
| Repeatability | height: ≤1μm (4 Sigma);volume/area: <1% (4 Sigma) |
| Gage R&R | <<10% |
| Inspection Speed | 0.45 SEC/FOV |

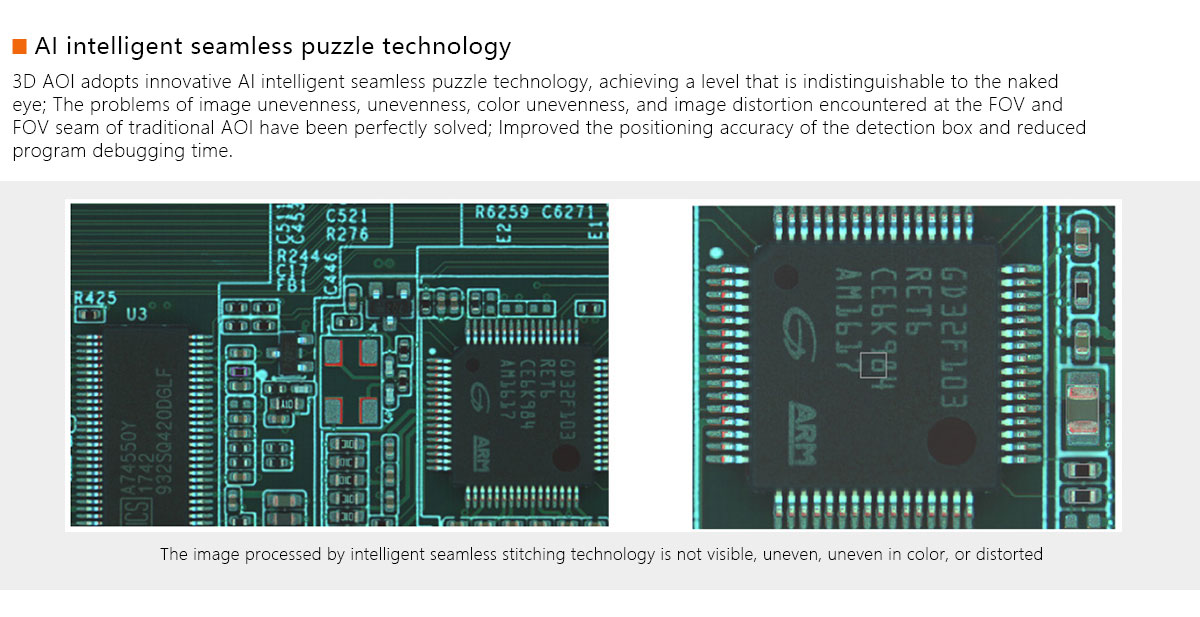

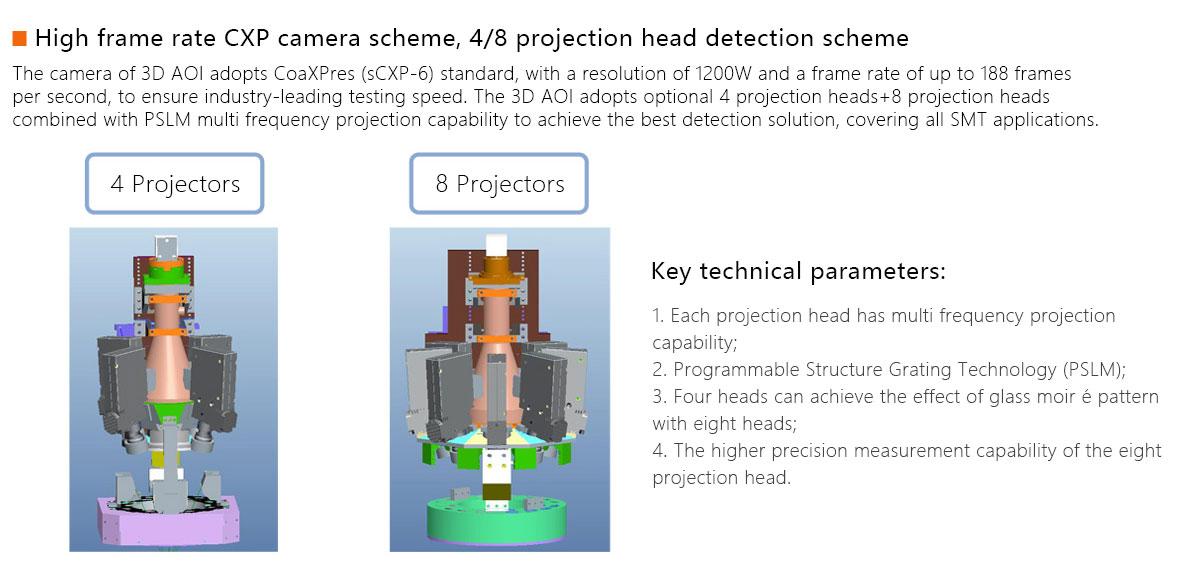

| Quanlity of Inspection Head | 4 pcs |
| Mark-point Detection Time | 0.5sec/piece |
| Maximun Meauring Head | 15mm |
| Maximum height ofelementon PCB | 40mm |
| Maximun Measuring Height of PCB Warp | ±5mm |
| Minimum element | 01005 |
| Maximun Loading PCB & Detection Size(X*Y) | 450x450mm 600x686mm |
| Conveyor Setup | front orbit (back orbit as option) |
| PCB Transfer Direction | Left to right or Right to left |
| Conveyor Width Adjustment | manual & automatic |

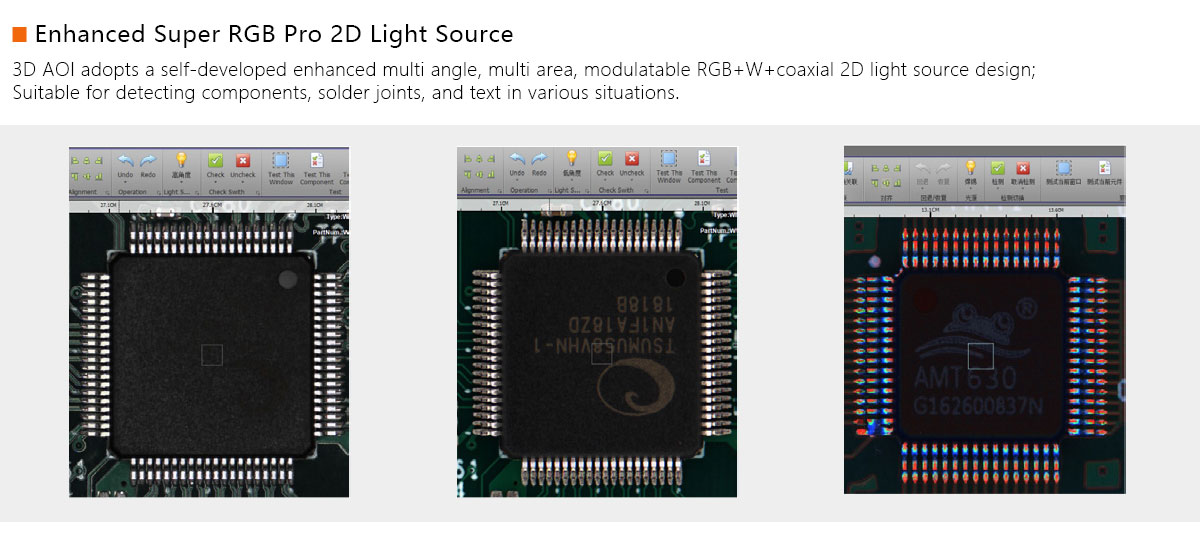

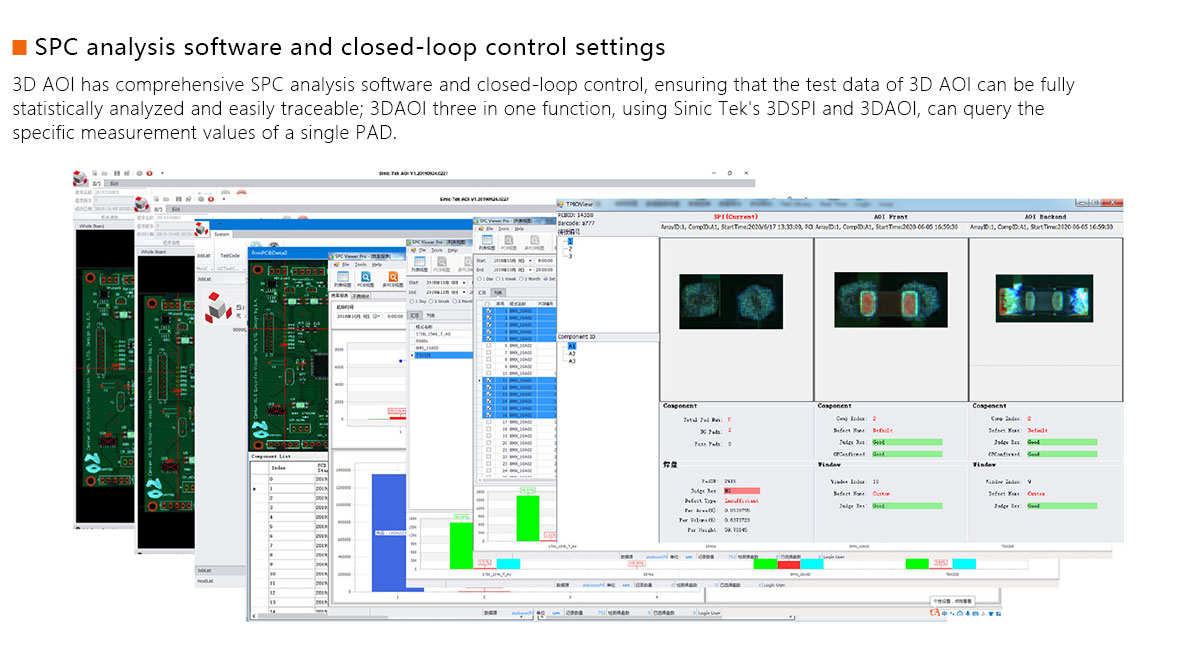

| Engineering Statistics | SPC:Production Trend;Xbar-R Chart;Xbar-SChart;CP&CPK; %Gage Repartability Data;AOI Daily/Weekly/ Monthly Reports |
| Gerber & CAD Data Import | support Gerber format (274x,274d),Artificial called the pattern, X/Yimport CAD |
| Operating System Support | Windows 10 Professional(64 bit) |
| Equipment Diemension and Weight | W1000xD1174xH1550mm，985Kg |
| Optional | 1 D/2 D Barcode Scanner;Badmark Function; three-point function; offline programming; Repair Station |
FAQ:
1.Will you provide on-site support?
Our team of qualified and experienced engineers can provide on-site maintenance and repair support. You can use the online chat box Skype、Whatsapp、 Contact us by phone and email, and we are always on standby to assist you in resolving any issues.
2.Will any training be provided?
We provide a complete training program for all industrial testing equipment, maintenance equipment, picking and placing equipment, reflow soldering equipment, wave soldering, selective soldering equipment, solder paste printing machines, PCB splitting machines and other SMT production line equipment in our Shenzhen factory, and offer on-site training at the customer's location. Our plan aims to provide your engineers, technicians, and machine operators with the necessary knowledge to fully utilize the operation and maintenance of our machines.
3.Where can I buy spare parts?
You can visit our spare parts store to obtain the parts you need, which can be paid by bank transfer/PayPal/credit card. In addition, you can contact us to obtain parts and make payment through bank transfer.
H.F.X - Our Company
About H.F.X:
H.F.X is a leading provider of factory planning solutions and industrial inspection solutions. We have 4 wholly-owned factories that provide professional consulting and services to global customers. We have over 11 years of experience in electronic integrated solutions and industrial testing solutions. We not only provide a complete set of equipment, but also offer comprehensive technical support and services, and provide customers with more reasonable professional advice. We help many clients establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We will establish factories in LED, TV, mobile phone, DVB, EMS, and other industries around the world. We are trustworthy.
Exhibition：
For SMT factory setup and industrial non-destructive testing, we can provide you with:
1. We provide you with complete SMT solutions and industrial testing solutions
2. We Provide Core Technology With Our Equipments
3. We provide the most professional technical services
4. We have rich experience in establishing SMT factories and industrial testing
5. We can solve any problems related to SMT and industrial testing
H.F.X-AI-510 | Online 3D automatic optical inspection equipment
